RC climbing tractor linkage simulation 1.14-inch LCD reversing image central control screen can play music electronic instrument

Note to buyers:

I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.

Product Description: Simulated RC Remote Control Car Reverse Camera 1.14-Inch LCD Model Car Central Control Screen

Suitable for RC rock crawlers as central control screen and instrument panel, it features a simulated cockpit.

Functions include reverse camera display and Bluetooth music playback.

Function Introduction:

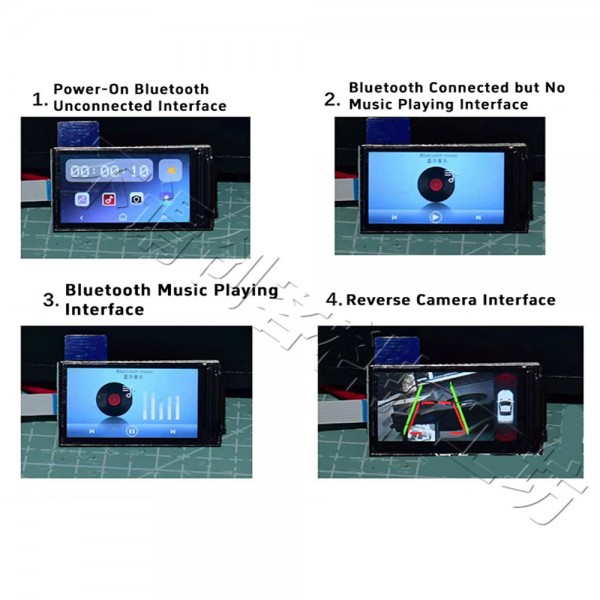

1.Bluetooth Unconnected Interface: Equipped with a timer that starts counting automatically when the device is powered on, allowing you to check the duration since power-on.

2.Music Playback Interface: Displays a simulated random music spectrum that beats, enhancing visual appeal. Note that the power amplifier may produce slight noise.

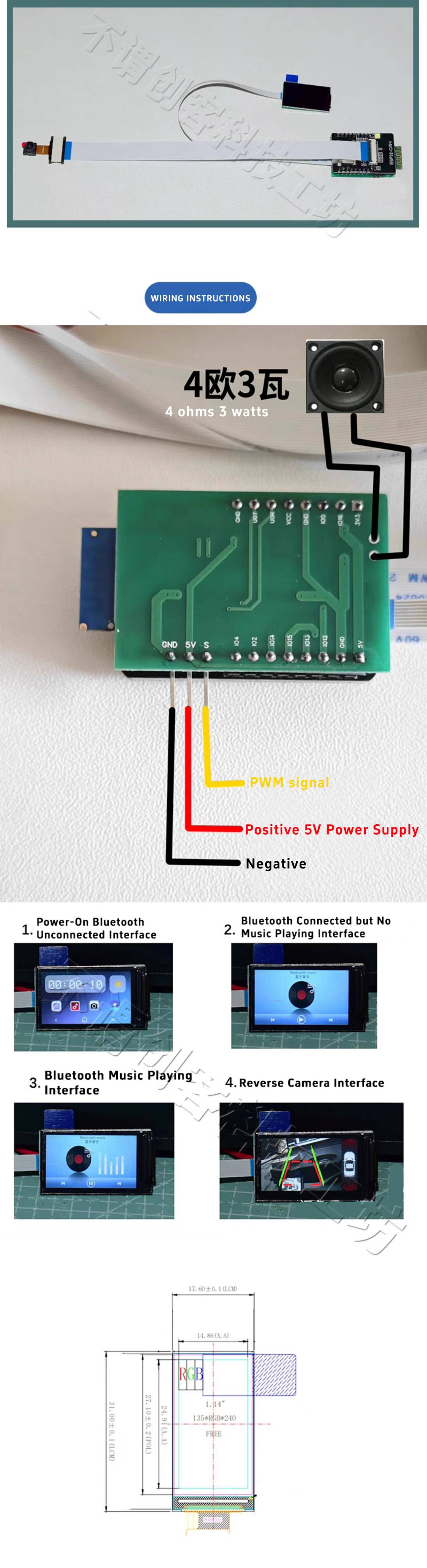

3.Reverse Camera Control: Connect the signal terminal to either the throttle channel or the 2-position switch channel of the receiver to control the reverse camera:

If connected to the throttle channel: Pushing the lever to the reverse position will automatically switch to the reverse camera interface. When the lever is in the neutral position or forward position, the screen will display one of the three interfaces (Interface 1/2/3).

If connected to the PWM channel controlled by a 2-position switch: The reverse camera display (on/off) is controlled manually.

4.Dimensions & Cables: Refer to the last picture for the screen dimensions. The screen cable is 20cm long, and the camera cable is 20cm long.

Note:The memory card slot is non-functional. Do not insert a memory card.
