HT HOBBY 1/14 Mini Remote Control Electric Metal RC Model Yale MO55 Forklift with Lighting and Sound System

Note to buyers: I can help you avoid expensive surcharges and taxes, please contact me. If possible, you can check with your country's customs before purchasing these additional costs.

Scale: 1/14

Brand: HT HOBBY

Product Weight: Approximately 0.5 kg

Material:Except for the interior decorative parts made of printed resin, all other parts are made of metal and etched parts.

Precautions:

The safe load capacity of the fork lift is 1.5 kg.The maximum limit load is 3 kg.Please use within the safe load range.Do not stall the motor, as this will burn out the motor.

Keep the center of gravity of the loaded object in the middle of the fork to prevent shaking and tipping due to unstable vehicle balance.

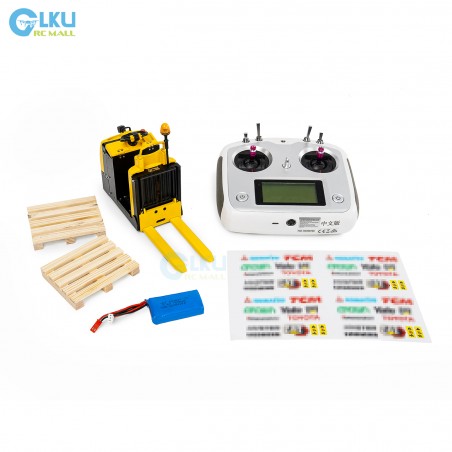

1. Package Contents

Ready-to-run low-level order picker

1 x 2S battery

1 x i6S remote control (with remote control batteries)

1 x FS-IA6 receiver

3 horn modes, sound system, electronic reverse beep, blue light, rotating light

2. Product Configuration

① Drive power: N20 motor, about 60 rpm

② Steering servo: 5 kg digital coreless motor, single-direction steering angle up to 100°

③ Fork lift power: N30 motor with industrial T4 lead screw (lift limit controlled by travel switch)

④ Light system: One blue light (3-position switch: pull down once from middle to turn on; pull down again from middle to turn off)

⑤ Rotating light: 2-position switch for 6 different rotating light effects

⑥ Sound & horn: 3 horn modes

(3-position switch: pull up from middle to turn on, return to middle to turn off)Temporary mode switch: Pull down quickly 6 times in a row on the 3-position switch

Memory mode switch: Press the black button on the light board twice continuously

⑦ Li-ion battery: 2S 7.4V 700mAh 20C [553011mm],

JST plugWorking time: Approximately 40 minutes

Product Dimension Diagram：
