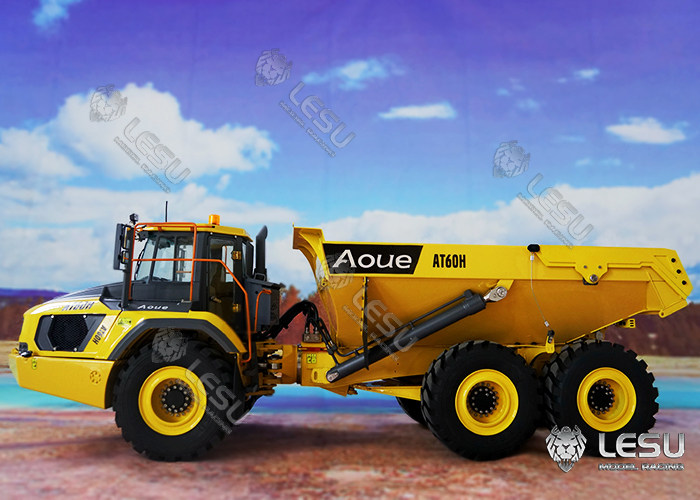

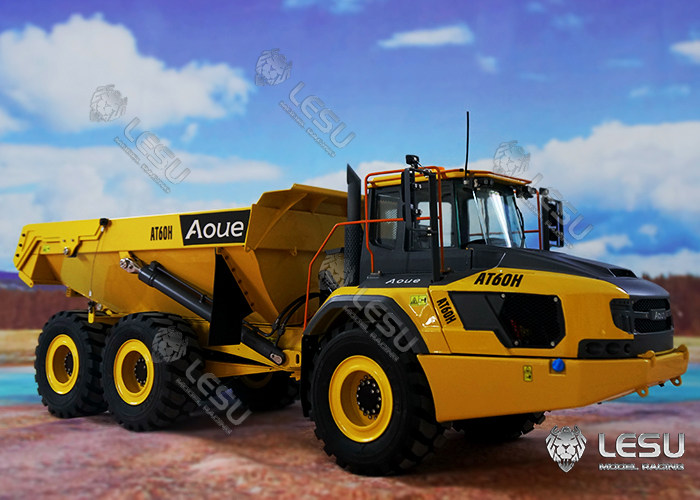

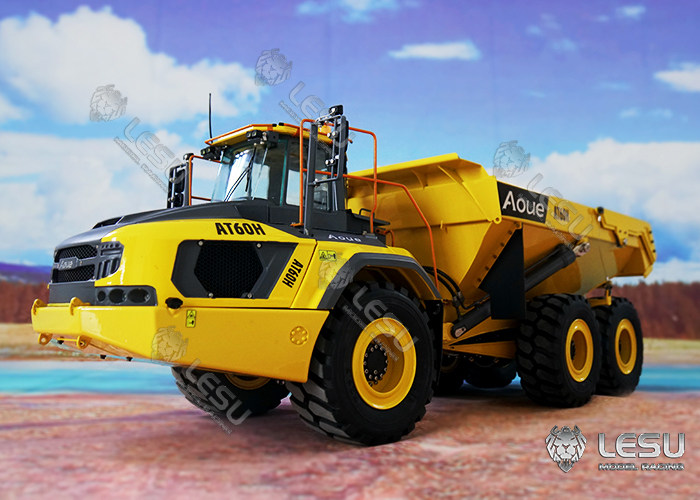

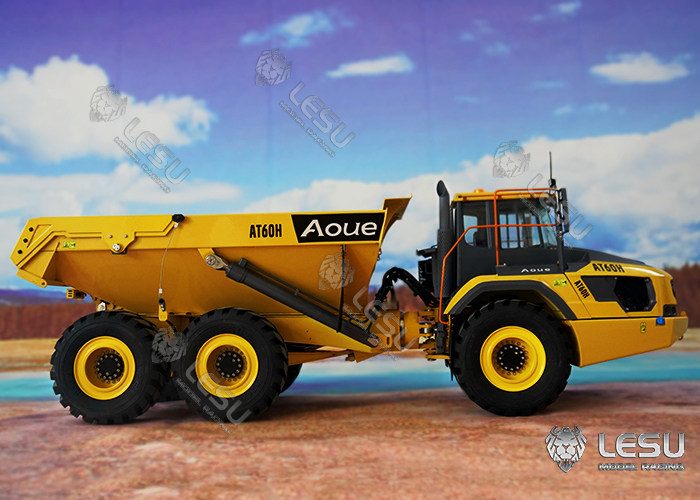

LESU 1/16 Hydraulic AOUE AT60H Articulated Truck Full Metal CNC Housing RD-A0004

Notice to Buyers:I can help you avoid high additional fees and taxes, please contact me. If possible, you can check these additional charges with your country's customs before making a purchase.

specification

Brand:LESU

ID:RD-A0004

Material: Metal

Scale :1:16

The vehicle features a 1:14 planetary two-gear high torque wave box, 6X6 full drive wheel reduction axle with differential lock. The powerful torque makes the quagmire road walk like a flat ground.

Hydraulic steering is used. The steering Angle is ±40 degrees. Powerful steering Angle without losing flexibility. Man and car in one control feeling. Even a novice can drive like an old driver.

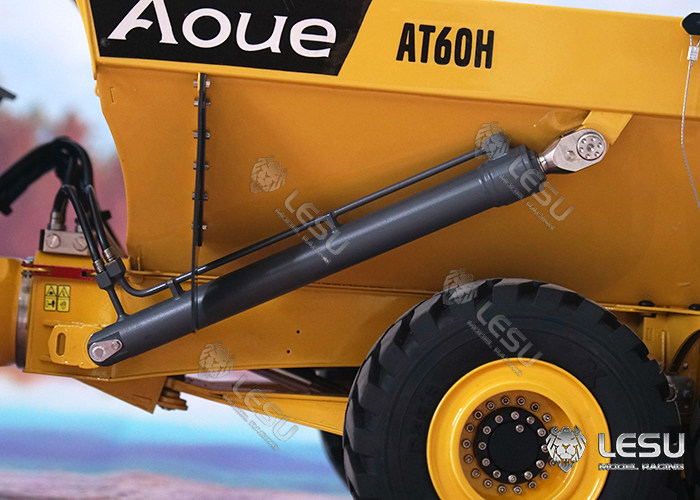

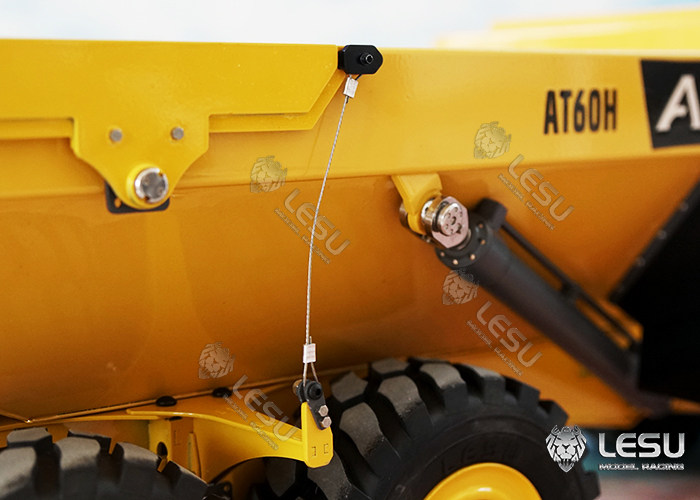

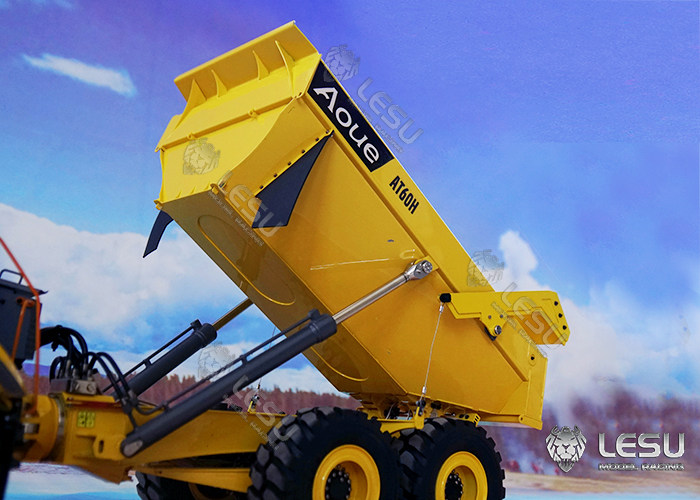

Hydraulic lifting and lowering bucket, lifting Angle is 55 degrees. With steering and bucket safety lock pin.

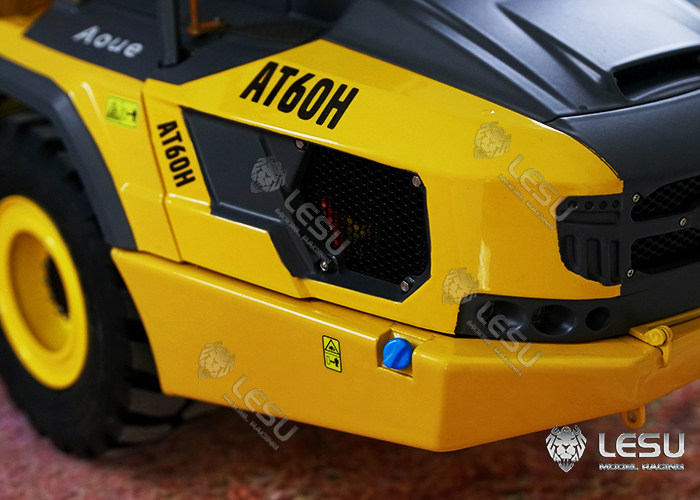

The shell adopts all-metal CNC machining technology. Streamlined lines, nice. All metal chassis. The whole car is sandblasted, which is convenient for players to paint.

The front suspension is independent with stabilizer bars. Straddle mounted bogie beam. Independent wheel movement via a 3-point mounting system. Straddle mounted bogie beam. Independent wheel movement via a 3-point mounting system. Move the wheels independently through a three-point mounting system). The powerful suspension greatly increases the operating range of the card. Off-road ability.

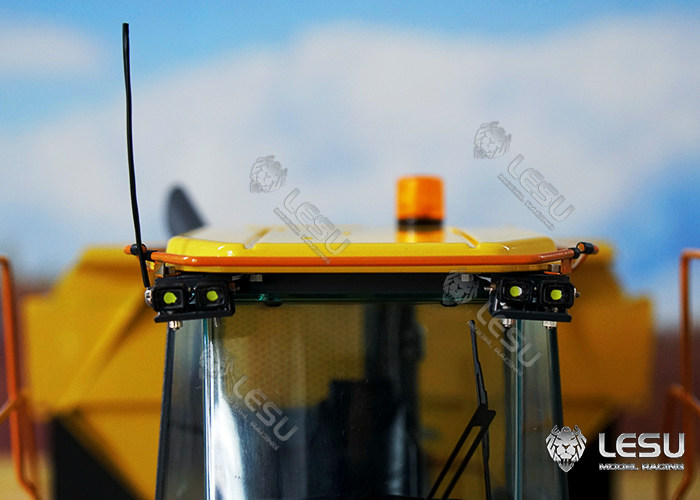

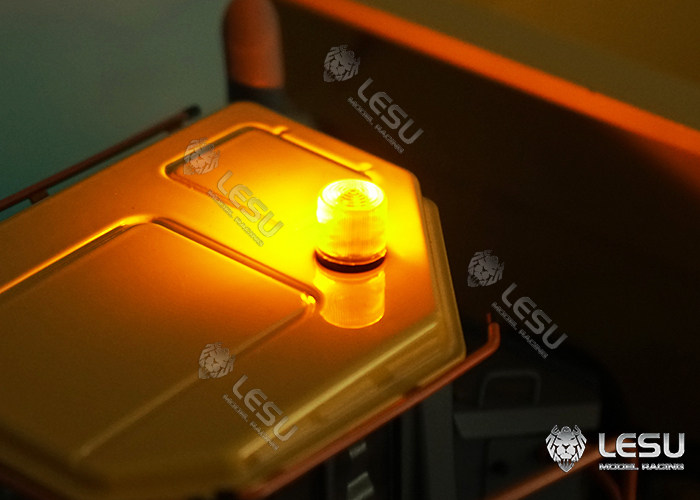

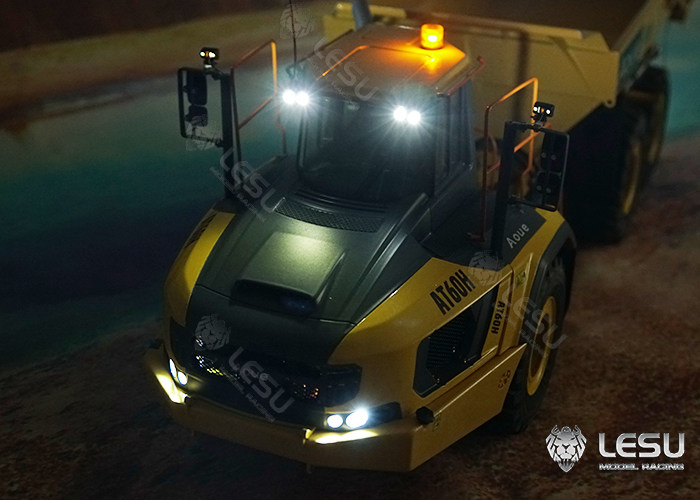

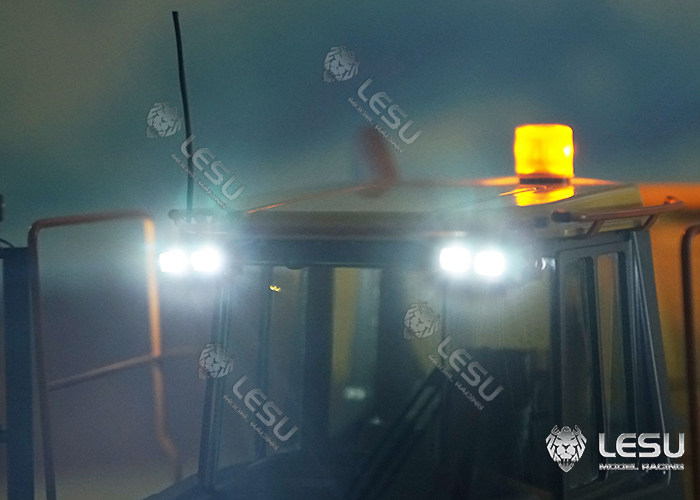

Electronic equipment: The electric adjustment adopts the Hoying 1060 brush electric adjustment, the Hoying Skywalker 50a brushless electric adjustment. Equipped with light set. 20 LED lights (spotlights, floodlights, width lights, etc.). Equipped with steering gear, motor. Equipped with a light group, not equipped with a sound group, players also need to be equipped with a separate remote control and batteries to play.

Integrated hydraulic system, easy to disassemble and install. The hydraulic pump uses the new 4 mpa high pressure oil pump. 2 channel directional valve. Hydraulic radiator. The whole car adopts copper pipe layout. Full of details. Hydraulic oil 46 hydraulic oil is recommended. Add 120ml of hydraulic oil. 1. Connect the control line of the steering gear of the two-channel reversing valve and the electrical control line of the hydraulic pump, unscrew the oil tank cap, and add 60ml hydraulic oil in advance.

2. Start the hydraulic pump motor and pay attention to the direction of the hydraulic pump motor.

3. Control the rotation of the steering gear of the reversing valve, control the hydraulic cylinder of the whole car to perform multiple maximum stroke actions, and need to add about 30ml hydraulic oil at intervals.

4. When the hydraulic cylinder performs smoothly, the hydraulic system emptying operation is completed, and the fuel tank cap is tightened. (That is, operating hydraulic pressure while refueling. Add hydraulic oil about 120ml).
