JDMODEL1/10 Simulation Pickup Truck Remote Control Climbing Car

Notice to Buyers:I can help you avoid high additional fees and taxes, please contact me. If possible, you can check these additional charges with your country's customs before making a purchase.

JDMODEL JDM-150 climbing vehicle 1:10 pickup truck model simulation pickup truck model

Brand: JDMODEL

Scale: 1/10

The model is very fast, please pay attention to safety and strictly follow the instructions and operation videos to operate it correctly!

The RTR version of the remote control has Dumbo

RTR version: equipped with remote control, ESC, servo, motor (battery purchased separately)

KIT version: does not come with remote control, ESC, servo, motor (battery purchased separately)

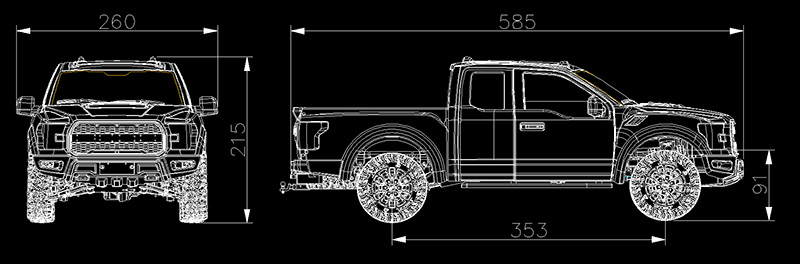

1. Dimensions: length 610MM, width 220MM (car body) height 215MM

2Pack size:750*330*295MM

2. Body weight: 4 KG, remote control 0.32KG

2 Packing weight: 2.5KG, total weight 6.8KG

3.Main materials: aluminum alloy, stainless steel, nylon, ABS, PC

4. Minimum ground clearance (axle gear package position) 26MM

5. Approach angle 30 degrees, breakover angle 15 degrees, departure angle 15 degrees

6. Power supply voltage: 12V, XT60 connector, it is recommended to use 3S lithium battery 25C or above (the battery needs to be purchased separately), size range: length, width and height within 155*57*30MM

7. Maximum speed: 20KM/H (3S battery)

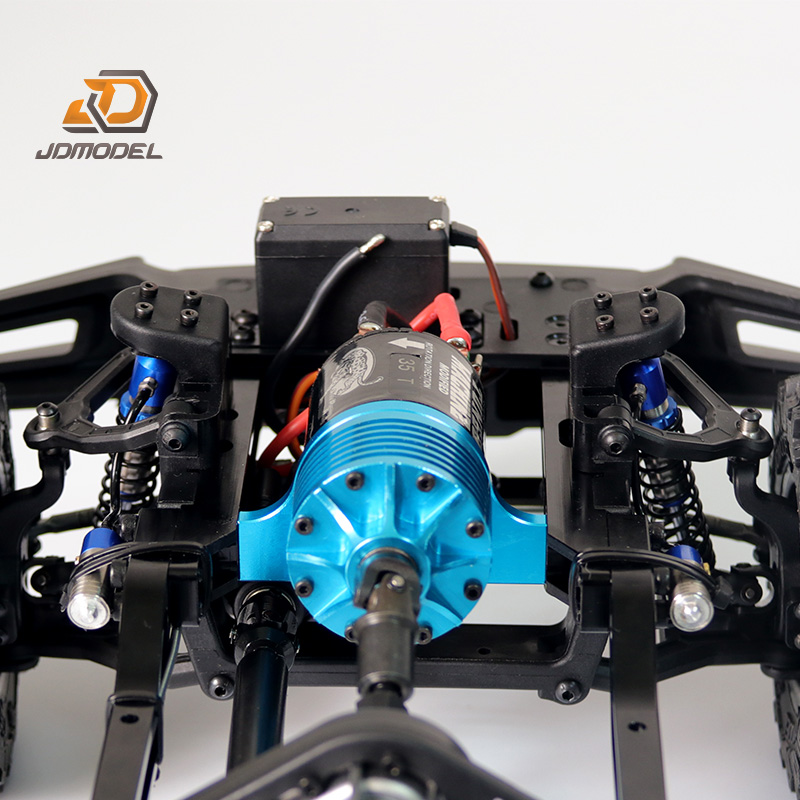

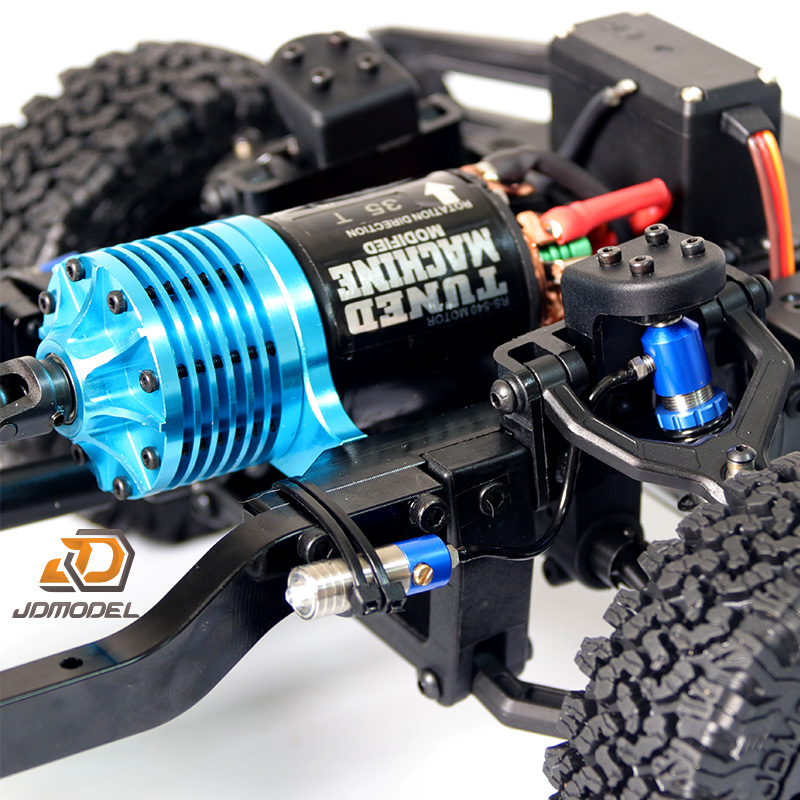

8. Remote control: Dumbo, the ESC uses Hobbywing 1060 brushed ESC (Note: only the RTR version comes with a remote control, ESC, servo, and motor)

9. Sound module: needs to be purchased and installed separately, not included as standard. Recommended 3T sound group

10. Lighting system: needs to be purchased and installed separately

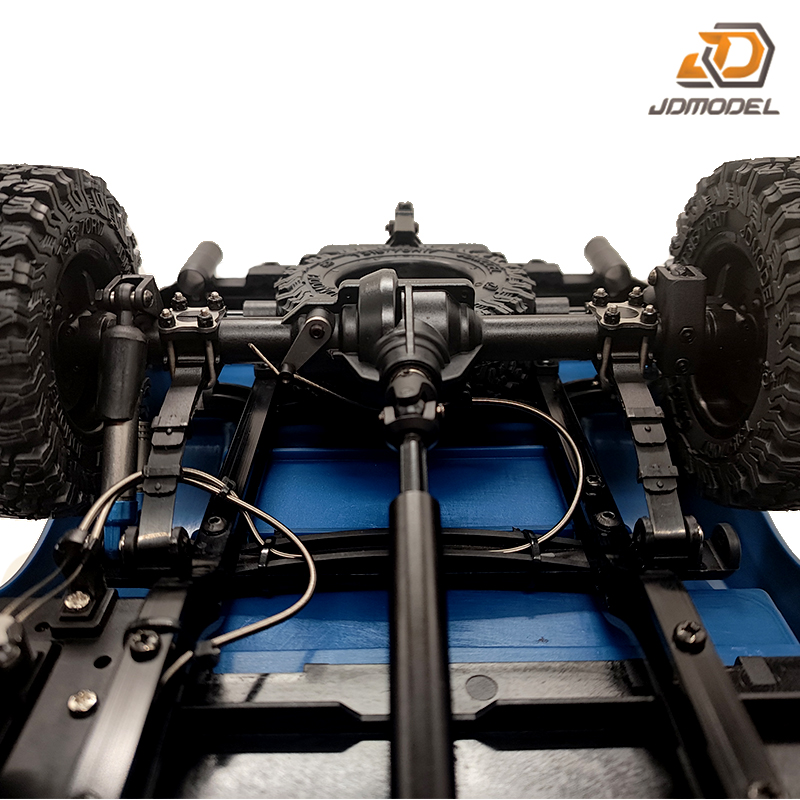

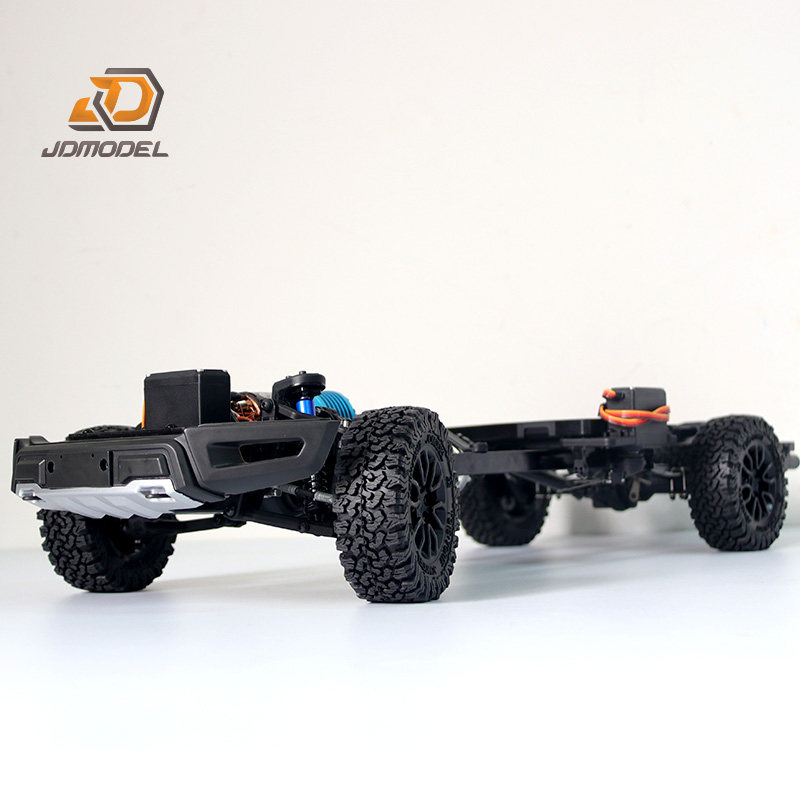

11. Main features: The chassis adopts front independent suspension and rear hard axle structure, simulated hard shell, and the axle has a remote control differential lock function.

12. Standard 1/16 planetary reduction gearbox, which can be upgraded to a two-speed simulation gearbox (purchased separately). The reduction ratio is 1/17.4 for the 1st gear and 1/4.75 for the 2nd gear. Notes:

A. In addition to the waterproofing of ESCs, electronic equipment, receivers, and servos must be waterproofed before they can be moderately waded into water. (Pay attention to protect the motor)
