JD Model 1/14 JDM-166 Remote Control Hydraulic Articulated Dump Truck Model

$2,493.33
JDM-166
10 Items
model
Quantity

Note to buyers:

I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.

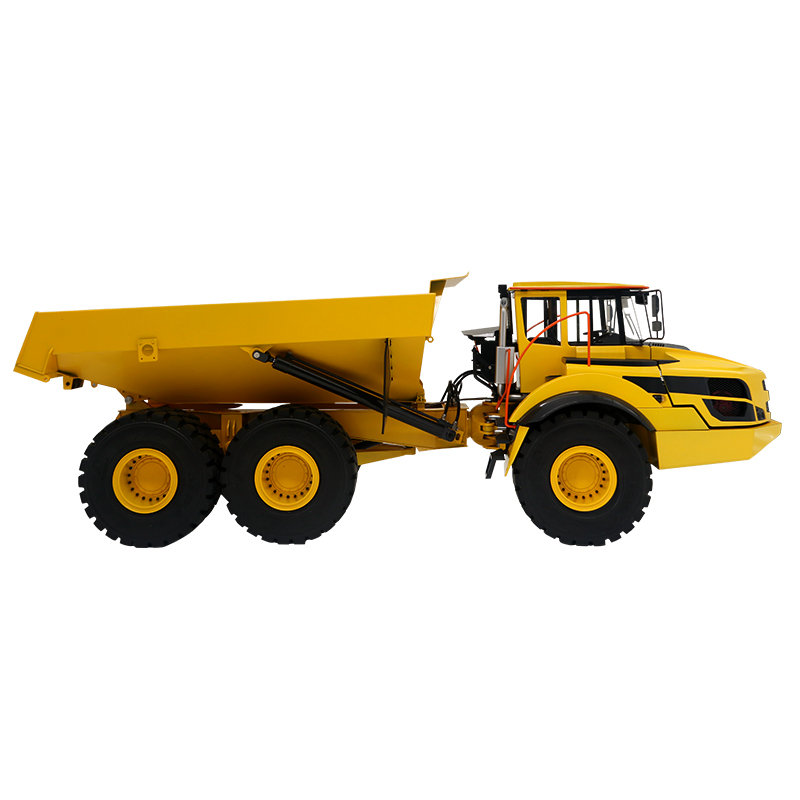

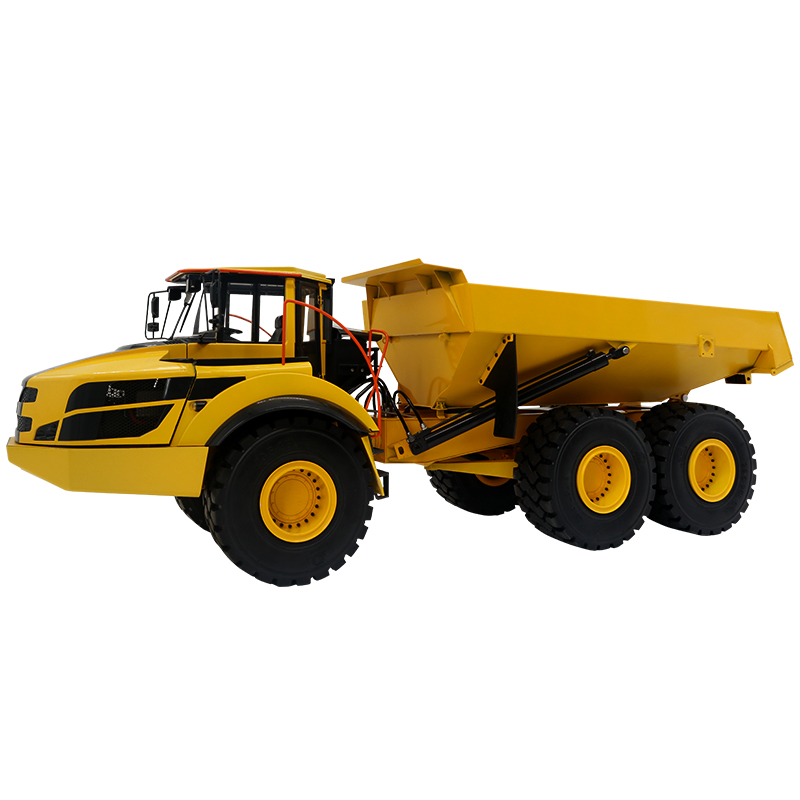

JDM-166 1:14 articulated hydraulic dump truck model

Brand: JDMODEL

Scale: 1/14

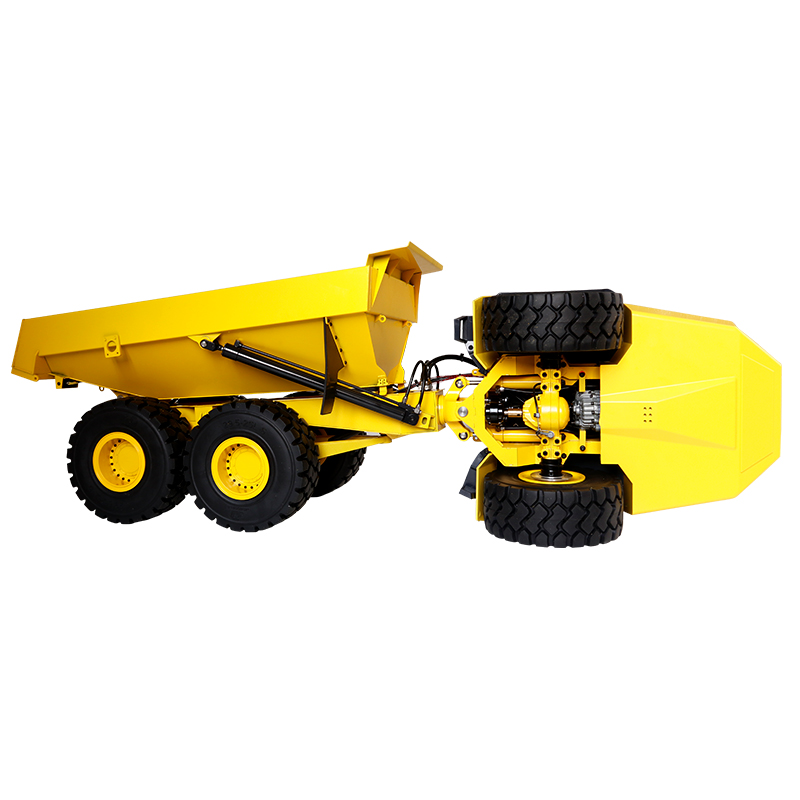

Important note: Since this car is articulated, the carriage and front can rotate 360 degrees. When taking it out from the packaging box, you need to use your hands to take it out steadily and parallel to prevent the front carriage from rotating and damaging the whole car.

The front of the car and the body of the car need to be kept level. If the front of the car is not level and the force is uneven, the front of the car will rotate and the whole car will fall.

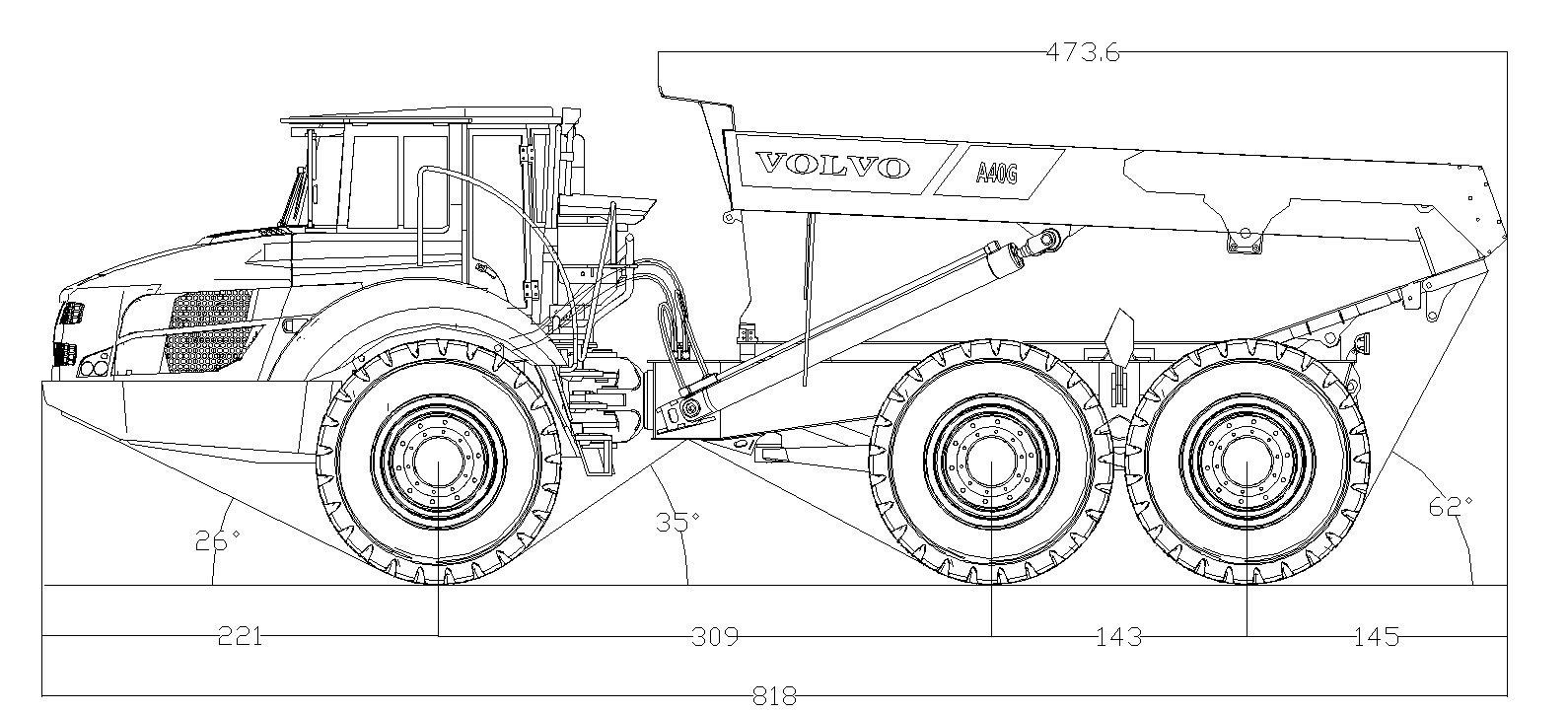

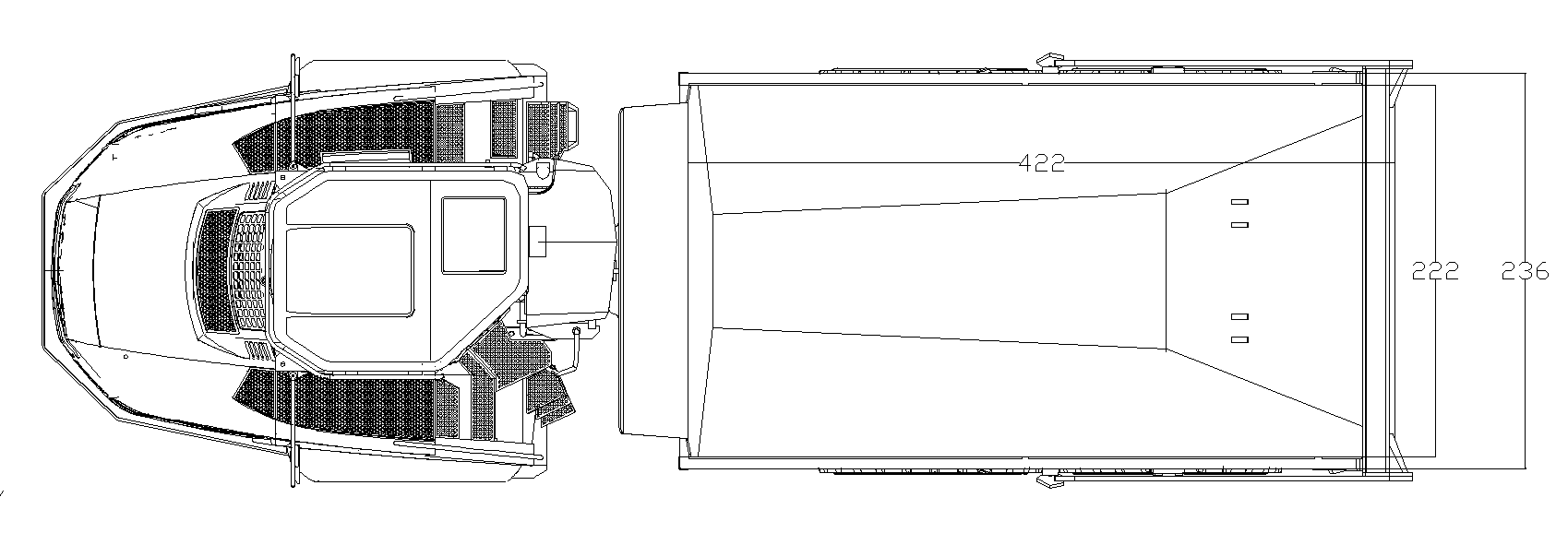

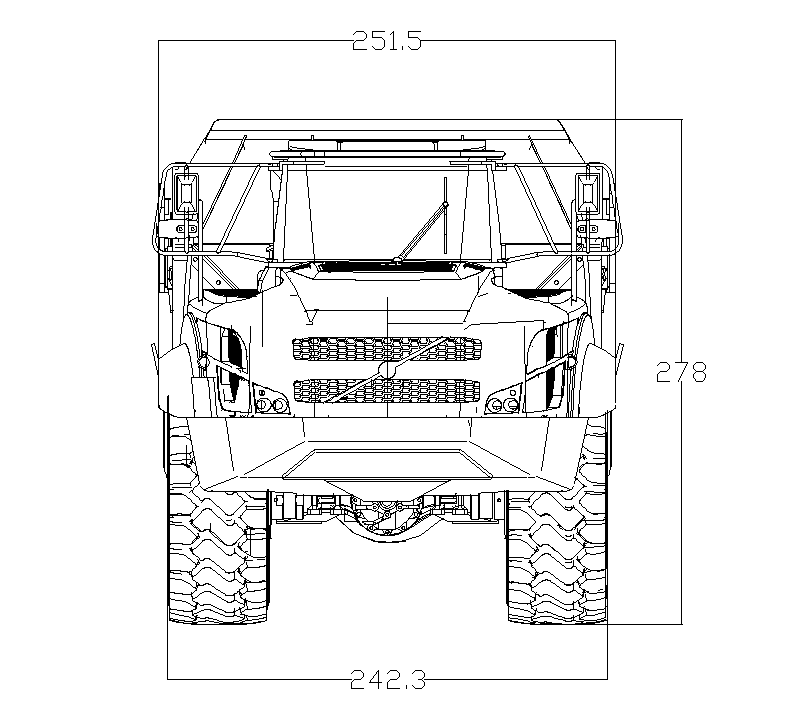

Dimensions: length 818, width 242.5 (tire end surface), height 278 (car roof), unit MM

Vehicle weight: 12KG

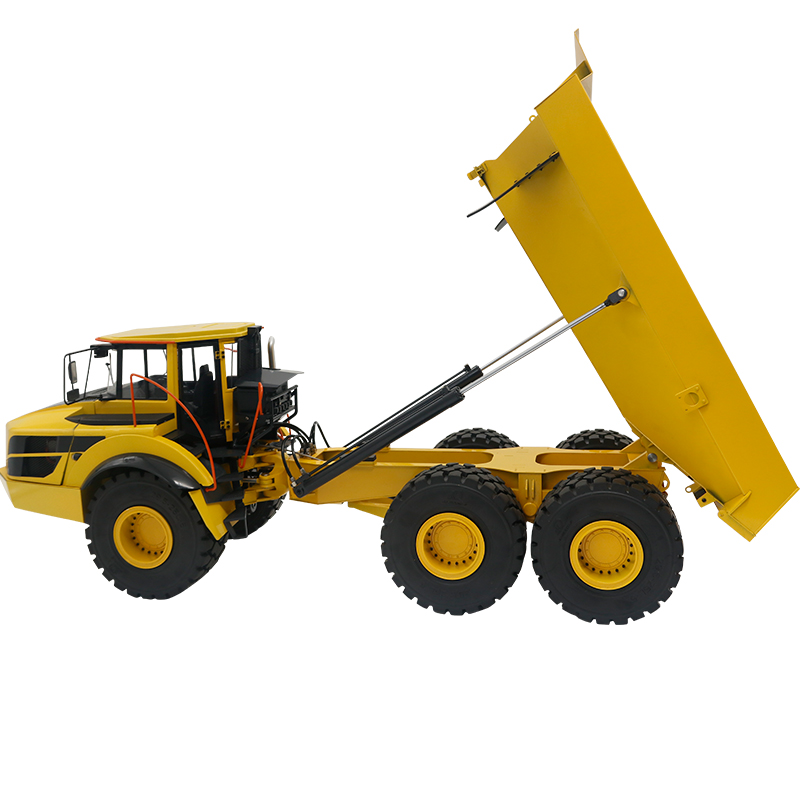

Truck body lifting capacity: 20KG

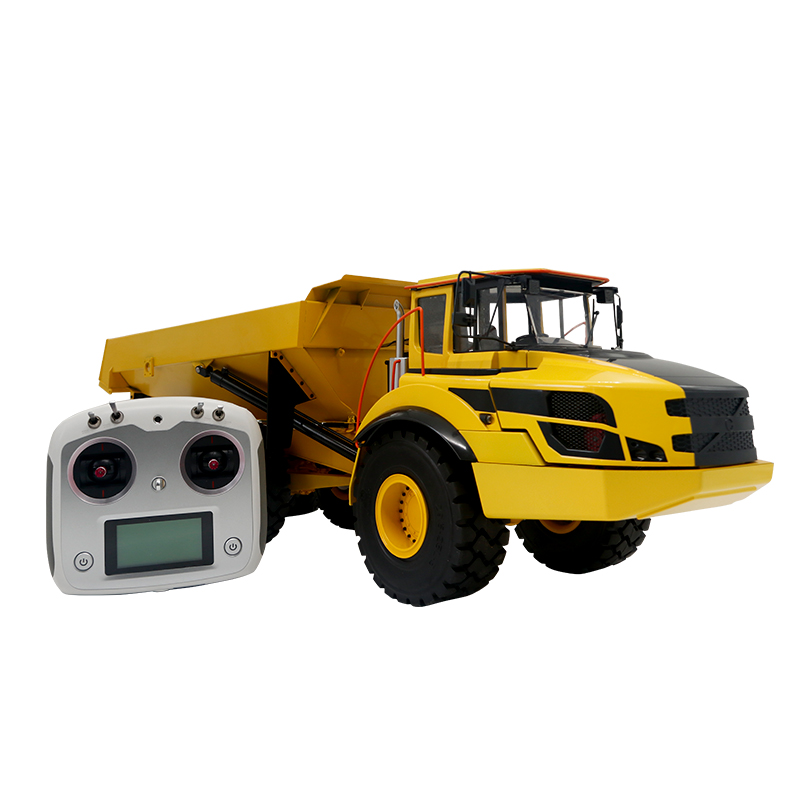

Remote control: Fossil FS-i6S uses 4 AA batteries (please confirm the positive and negative poles when installing)

Power supply voltage: 12V, using 3S lithium battery (within the dimensions of 135MM long, 43MM wide and 30MM high, the battery and power indicator need to be purchased separately)

Boot sequence:

1 Please turn on the remote control first

2 Connect the model main power supply

3 Wait for 5 seconds before you hear the ESC confirmation tone before operating.

Sound system: not standard

Hydraulic pump: flow rate 0.8L/MIN, rated pressure 3MPa, ultimate pressure 5Mpa.

Directional valve: Miniature 2-way plug type directional valve with center oil return.

Lighting system: standard

Engineering lights: standard
