JD Model JDM-198 Remote Control Hydraulic Loader Model ZW370

Note to buyers:

I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.

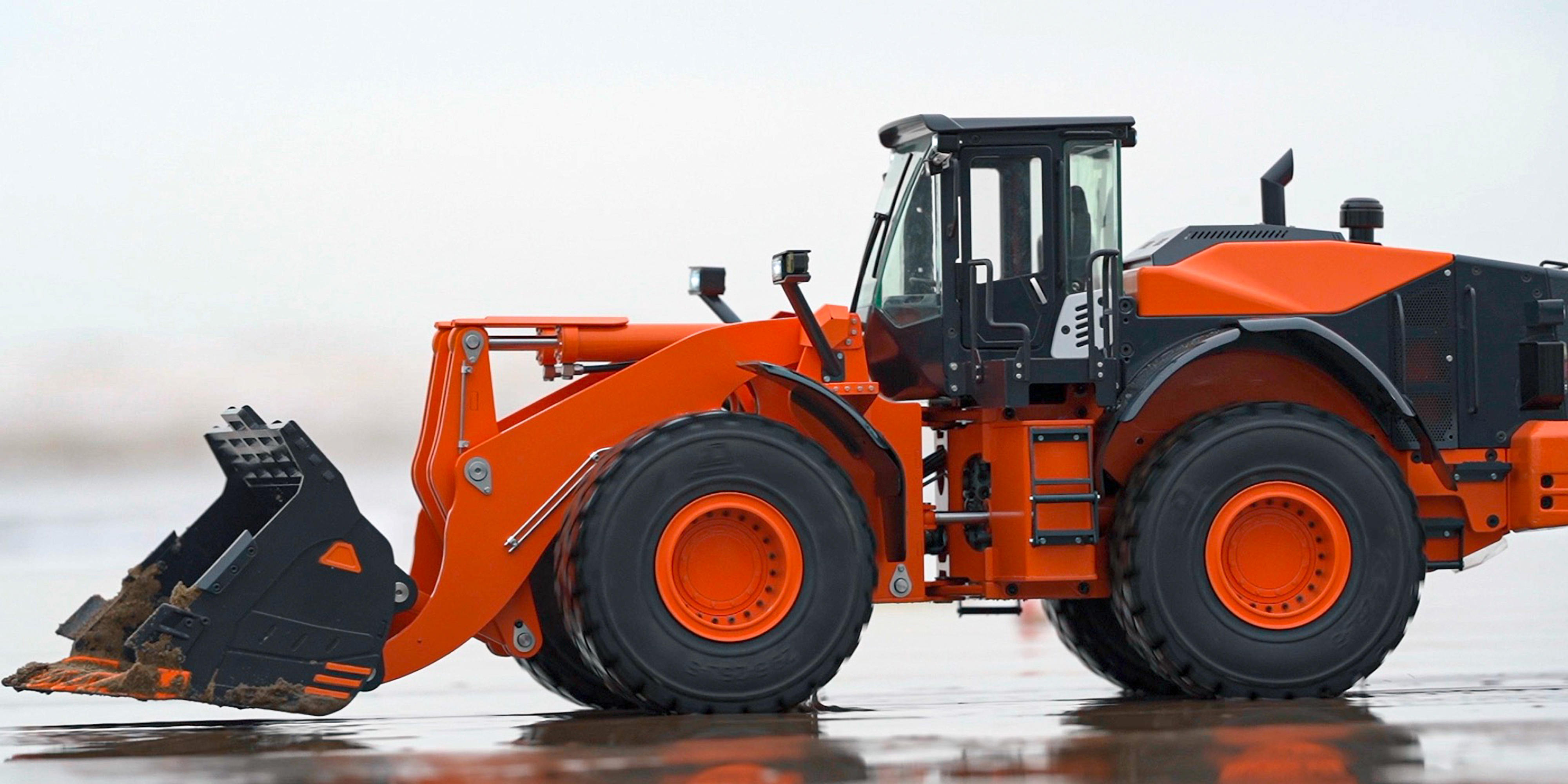

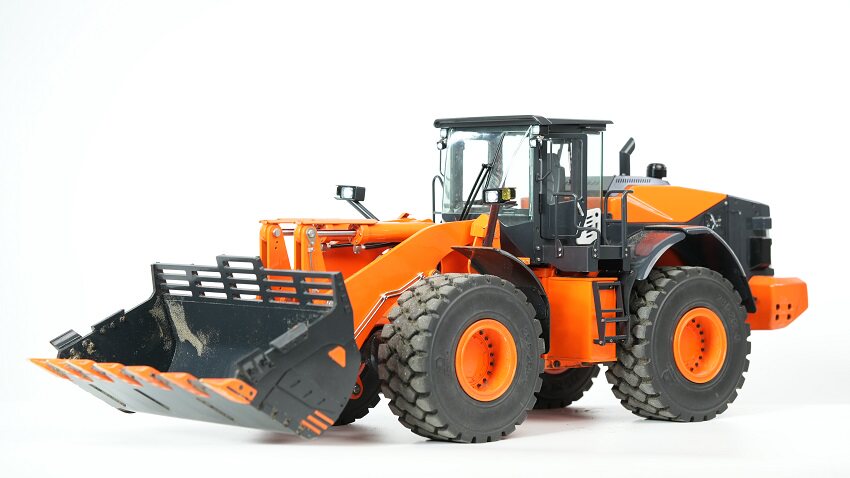

JDM-198 remote control hydraulic loader model

Brand: JDMODEL

Scale: 1/14

The model is very fast, please pay attention to safety and strictly follow the instructions and operation videos to operate it correctly!

The whole vehicle is RTR configuration, with standard remote control, ESC, steering gear, lights, sound group, and motor. Model friends only need to buy their own batteries.

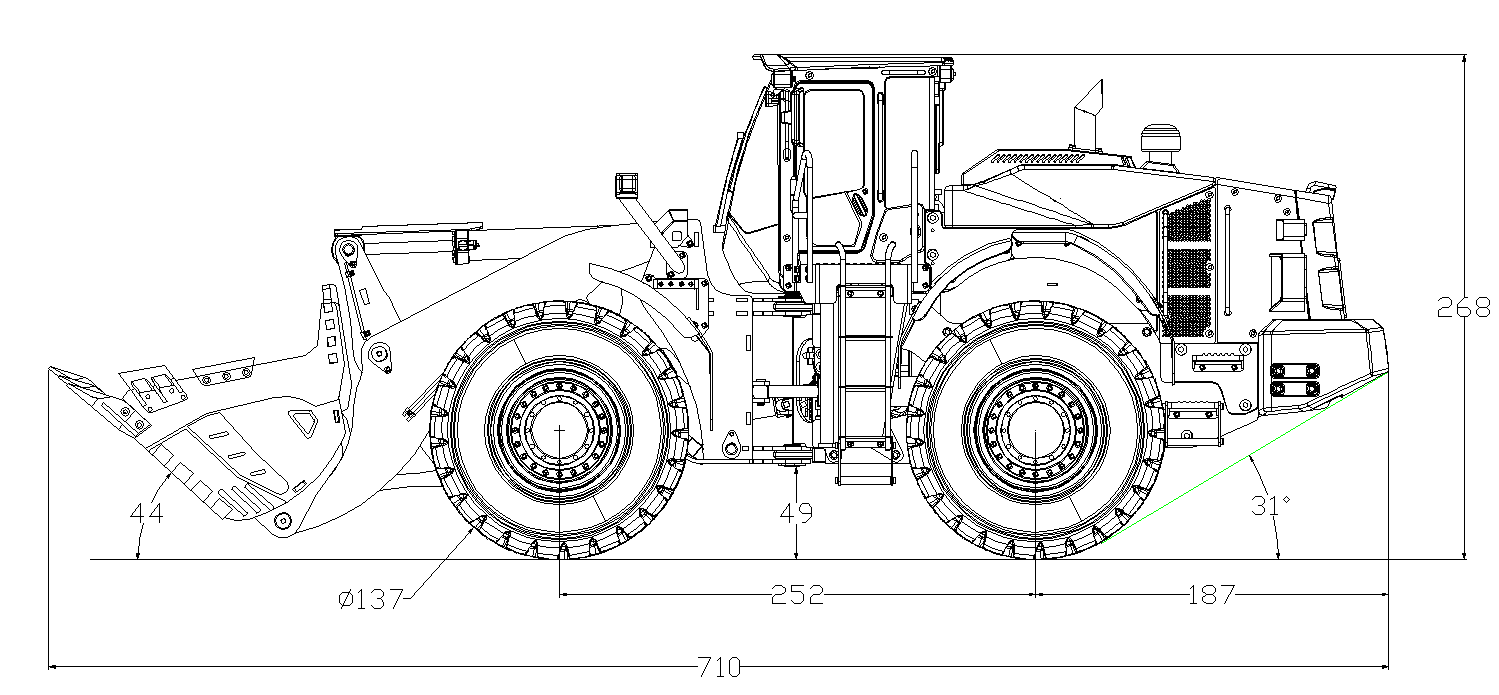

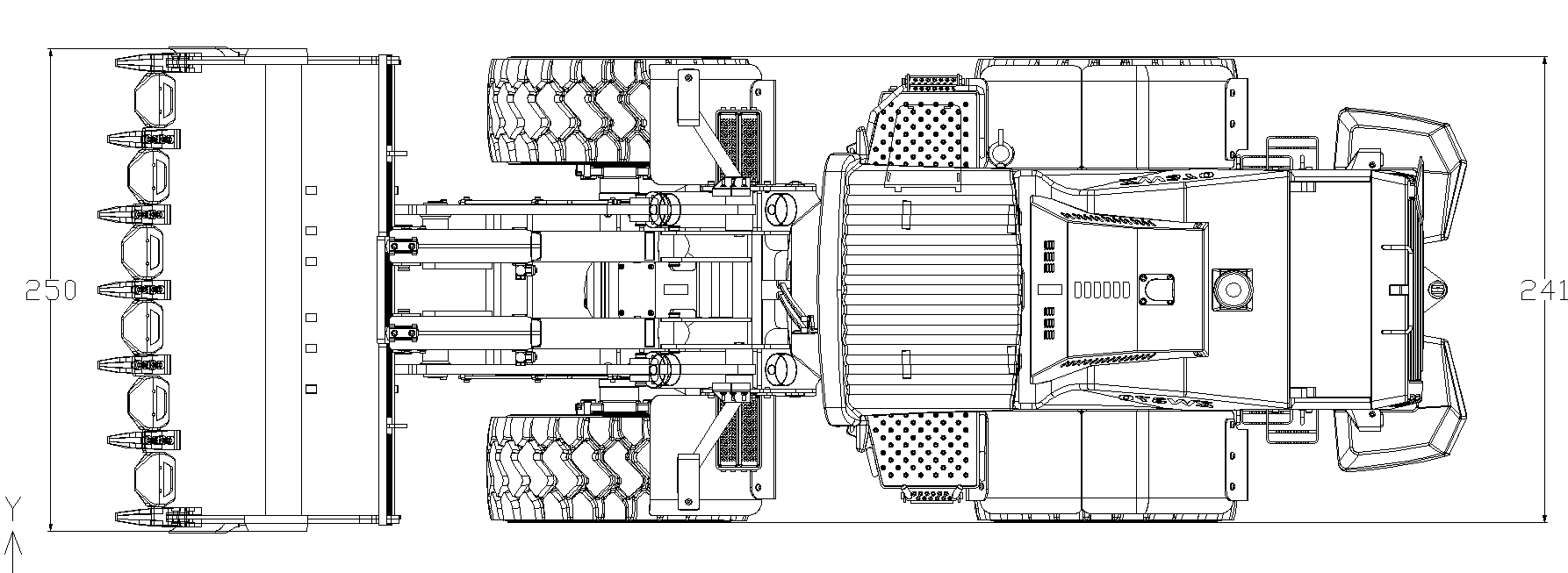

Dimensions: length 710 (bucket flat), width 250 (tire end face), height 268, unit MM

Vehicle weight: 16.5KG Theoretical lifting force: 15KG (big arm lifting)

Theoretical traction: 30KG

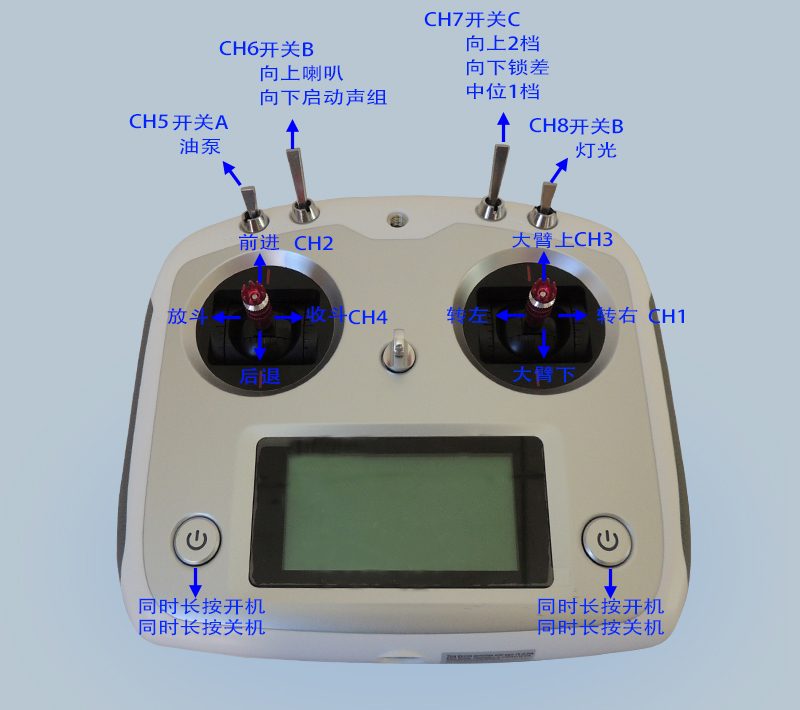

Remote control: Fossil FS-i6S uses 4 AA batteries (please confirm the positive and negative poles when connecting)

Power supply voltage: 12V, using 3S lithium battery (length 150MM, width 45MM, height 35MM)

Sound system: standard

Hydraulic pump: flow rate 0.8L/MIN, rated pressure 2.5MPa, ultimate pressure 5Mpa.

Directional valve: Miniature 3-way plug type directional valve with center oil return.

Lighting system: standard, low beam, high beam, fog light, dome light

Transmission: planetary two-speed, first gear 1:64, second gear 1:16

Axle: Speed ratio 1:10.4, differential lockable

Note: When the boom is in the lowest position and the bucket is unloading materials, the boom cannot be lifted up, otherwise the bucket cylinder may be damaged.

Due to the large mass of the vehicle, collisions need to be avoided during transportation, otherwise the axle and bucket cylinder will be damaged.

New car hydraulic oil should be added to 150 to 200 ml

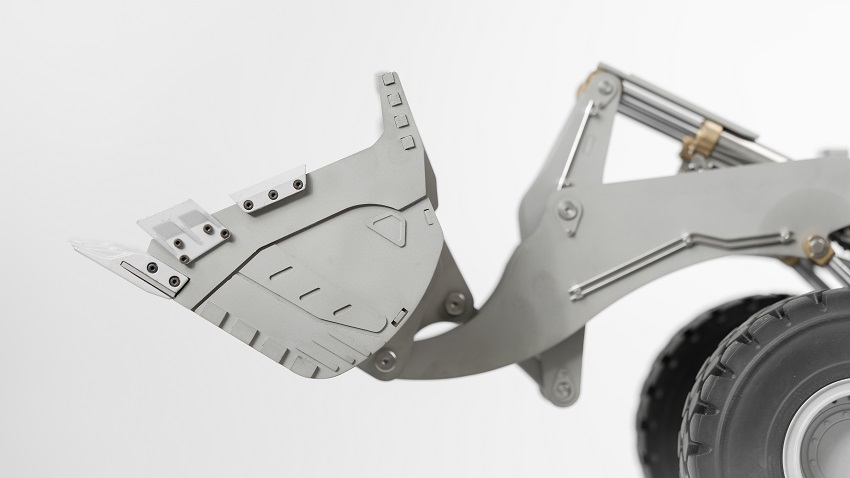

The size of the packed carton is 885*380*380MM, and the weight of the packed product is 22KG. The discharge angle of the bucket at any angle is greater than 45 degrees; it is designed with an automatic leveling function (after unloading, you only need to move the boom down, and the bucket will automatically level to Shovel installation state about 5 degrees above the ground)

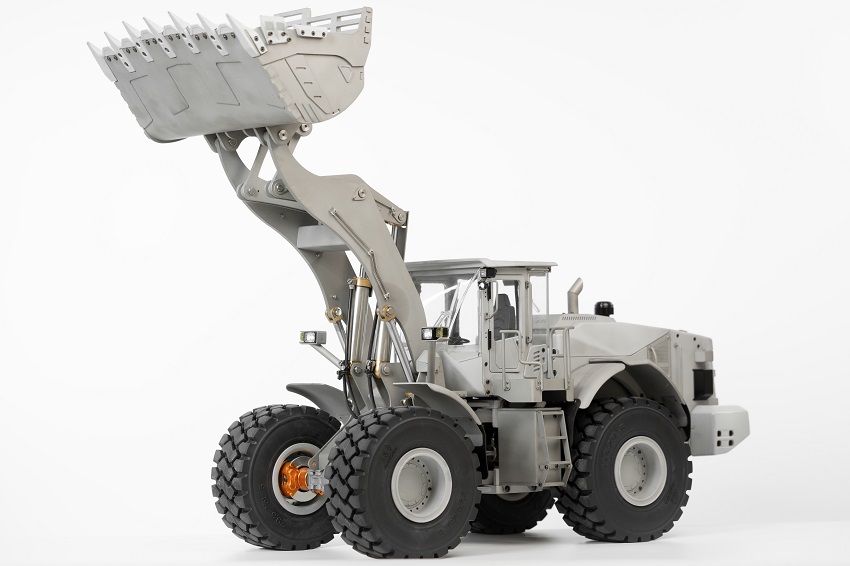

The maximum retracting angle of the bucket is 44 degrees; it is designed with an automatic translation function (after retracting the bucket, you only need to move the boom upward, and the bucket will automatically move to the highest point, ready for unloading). The maximum discharge height is 250mm. The maximum blanking angle can reach 45 degrees and the maximum lifting height is 480mm.

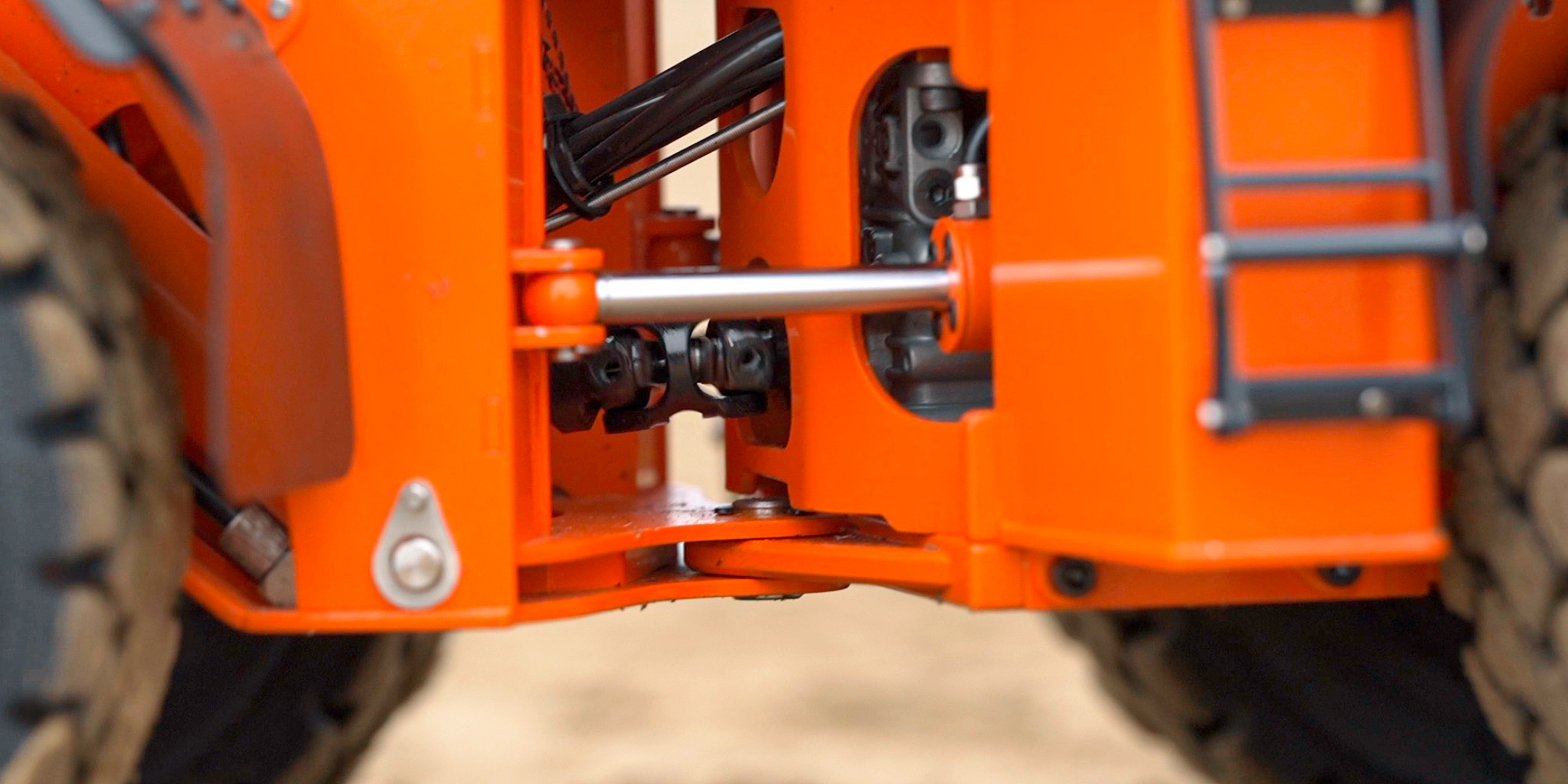

The hydraulic steering design of the articulated frame is 39 degrees, and the minimum turning radius of the tire center is 39OMM.
