JDMODEL JDM-25 hydraulic reversing valve, hydraulic valve, engineering vehicle oil valve, oil pressure valve

Note to buyers:

I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.

Model: JDM-25

JDM-25: New hydraulic reversing valve (3-way valve has a mid-position overflow function, and the oil flows back to the tank when it is not in motion).

Functional features: For a reversing valve, such as an N-position valve, as long as one cylinder is in motion, the mid-position return oil circuit will be blocked, but there is another high-pressure oil circuit that can lead to the high-pressure area of ​​all cylinder positions, so our reversing valve can make all oil circuits move at the same time, but when there are many movements, whether the movements can be completed at the same time depends on the flow of the oil pump. When the flow is insufficient, the oil with a smaller load completes the action first, and then the oil circuit with a larger load can complete the action. It is recommended to use JDM-20, JDM-21 large flow oil pumps.

Use requirements: rated pressure 2.5-3MPA, compact size, equipped with 9 M5-4L elbow nozzles. Driven by 9G size servo (standard without servo). Made of chrome steel.

You can buy the full metal DMC809 high-power servo

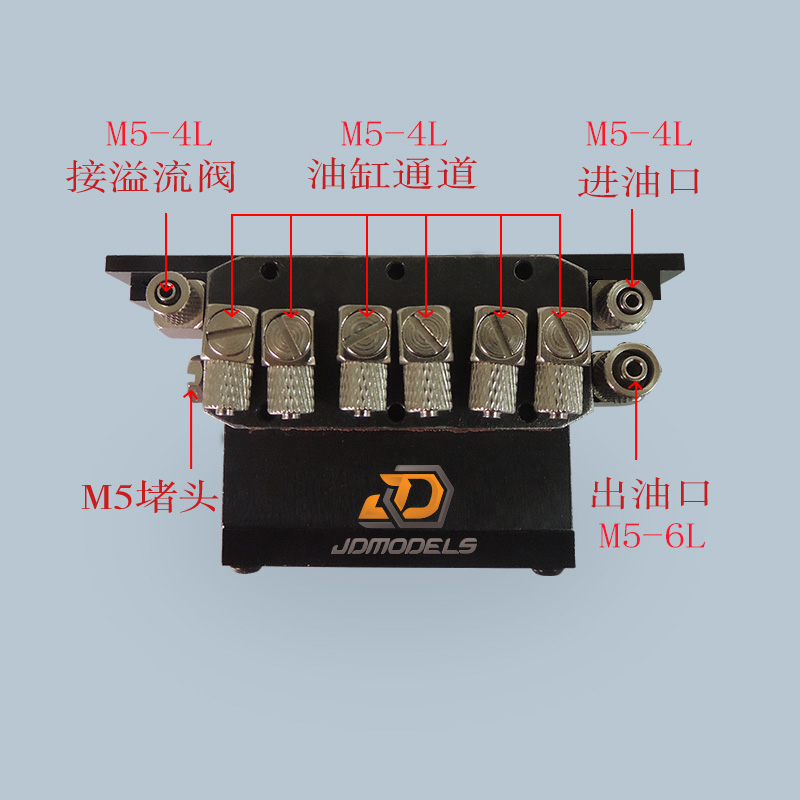

Accessories: 1 M5 plug; 9 M5-4 L nozzles.

Servo assembly instructions:

1. First trim the servo arm to the required size for assembly

2. Install the trimmed servo arm onto the servo and adjust the neutral point.

3. Install the servo with the adjusted neutral point onto the valve.

4. Install the three valve plugs in sequence and the installation is complete.

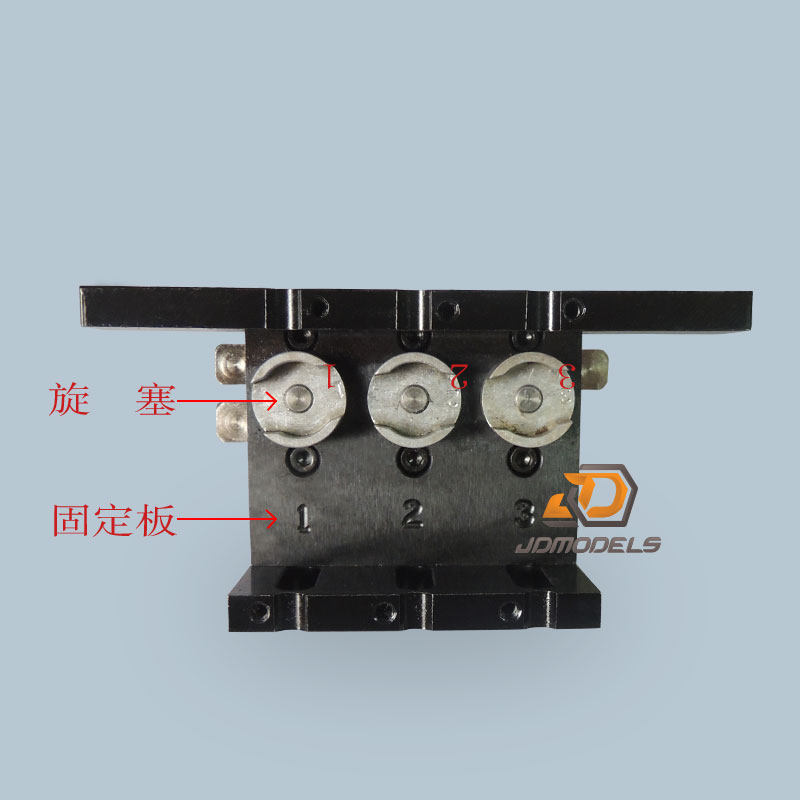

Note: When this product is shipped, the position of the plug is the default. Please do not adjust the position of the plug at will. The default position is shown in the picture. If the player adjusts it by himself, he can also restore it to the position in the picture.
