JDMODEL JDM-21 model hydraulic pump, gear pump, micro oil pump micro hydraulic pump, engineering machinery model

$18.33
JDM-21
10 Items
model
Quantity

Note to buyers:

I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.

Model: JDM-21

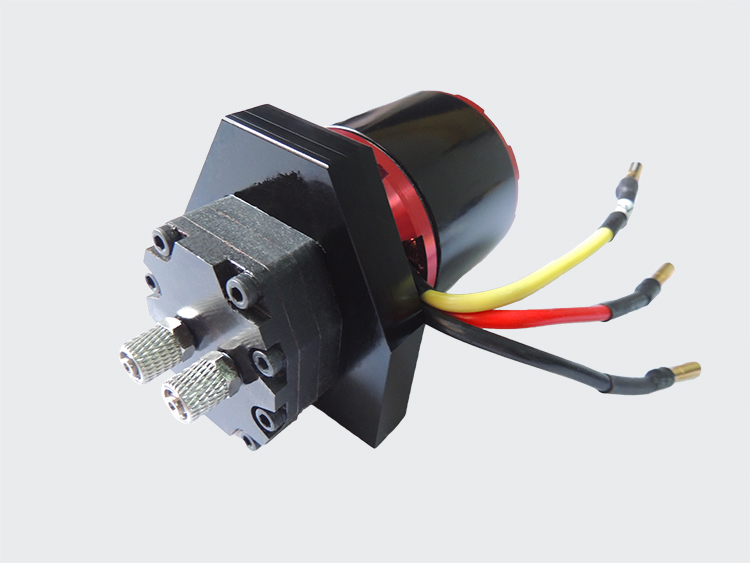

JDM-21 4130 motor version oil pump, flow rate 1.2L/MIN, rated speed 2800 rpm, maximum pressure 5 MPa. The pump and motor use spline l coupling to reduce the noise of the oil pump.

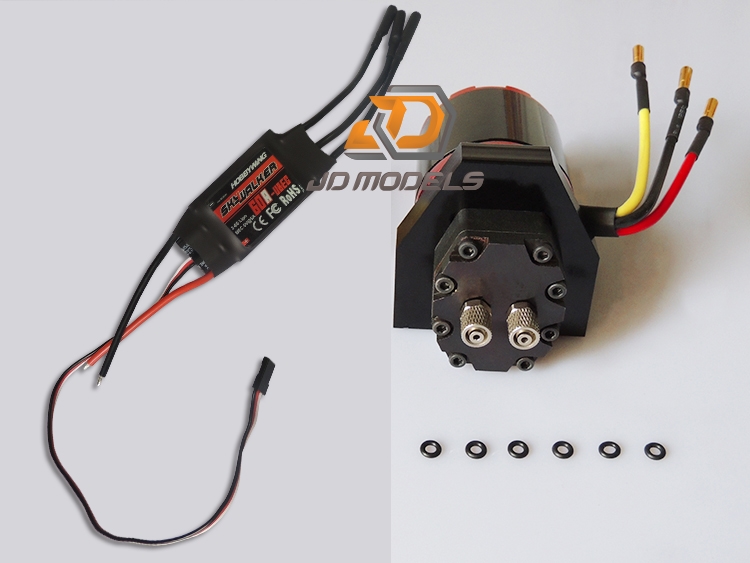

Accessories details, one 125A brushless ESC (note that the ESC has been upgraded to Haoying 60A brushless ESC), a set of pump and motor assembly, one M5-6 and one M6-6 straight oil nozzle.

Motor 3S-6S 11.1V-22.2V

Current of about 15A when working

The motor power is very large with 1.8KW

The power of the pump is about 240W

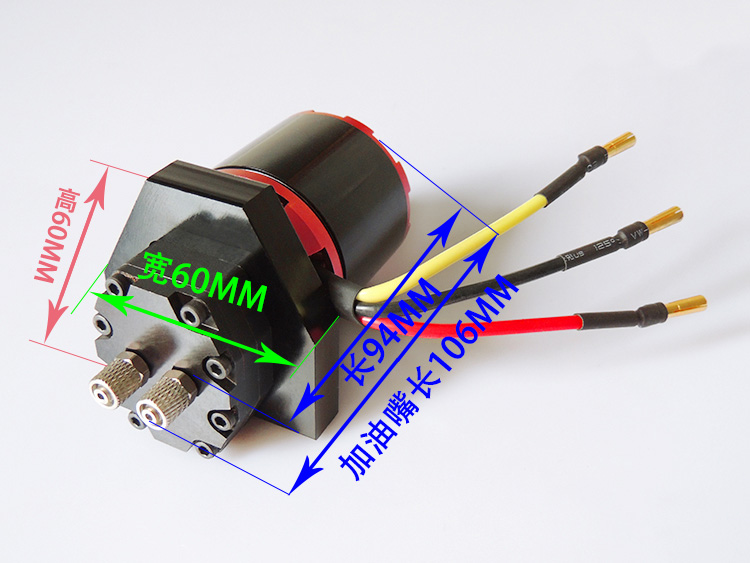

Oil pump size: length 94MM width 60MM height 60MM. Output shaft diameter 6MM

Overall size: 106mm with grease nipple, 94mm without grease nipple
