JDMODEL 1:14 Tractor Climbing Drive Shaft, Universal Joint CVD

$18.33
JDM-CVD
10 Items
model
Quantity

Note to buyers:I can help you avoid costly additional fees and taxes, please contact me. If possible, you can check with your country's customs office about these additional costs before purchasing.

Model: JDM-10

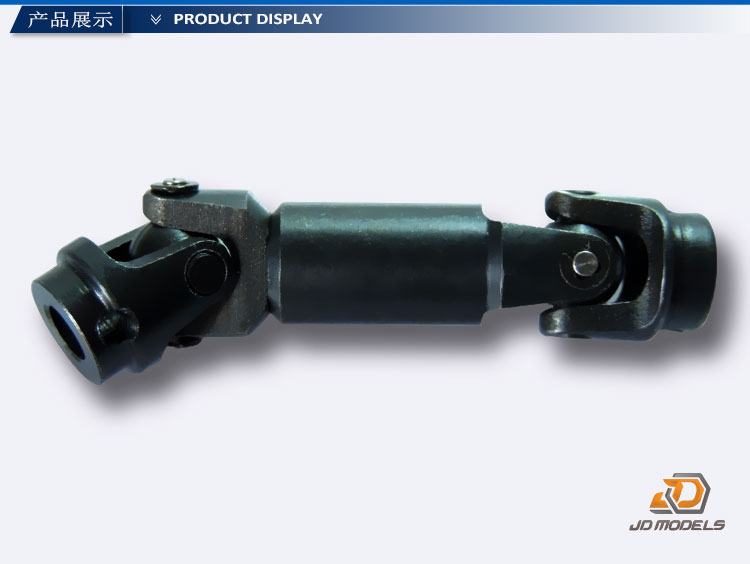

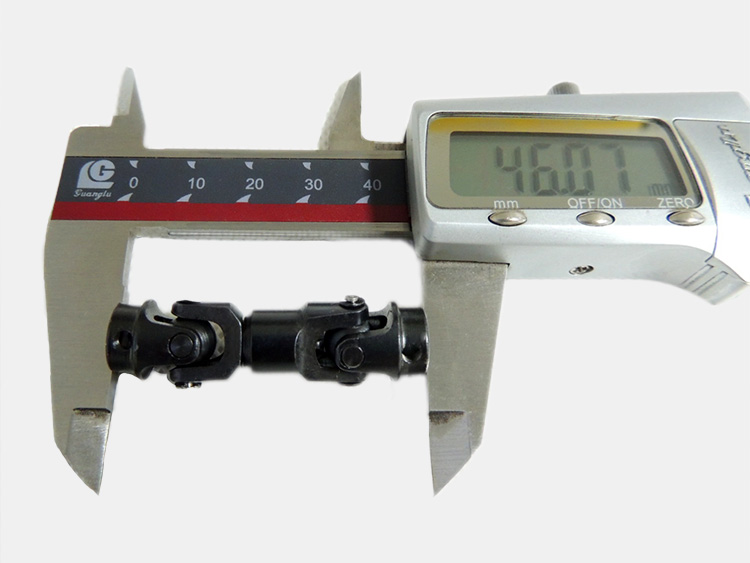

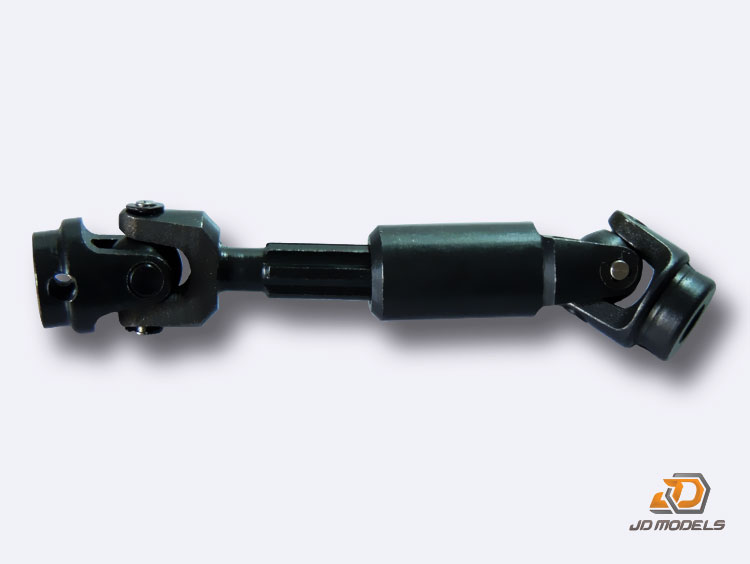

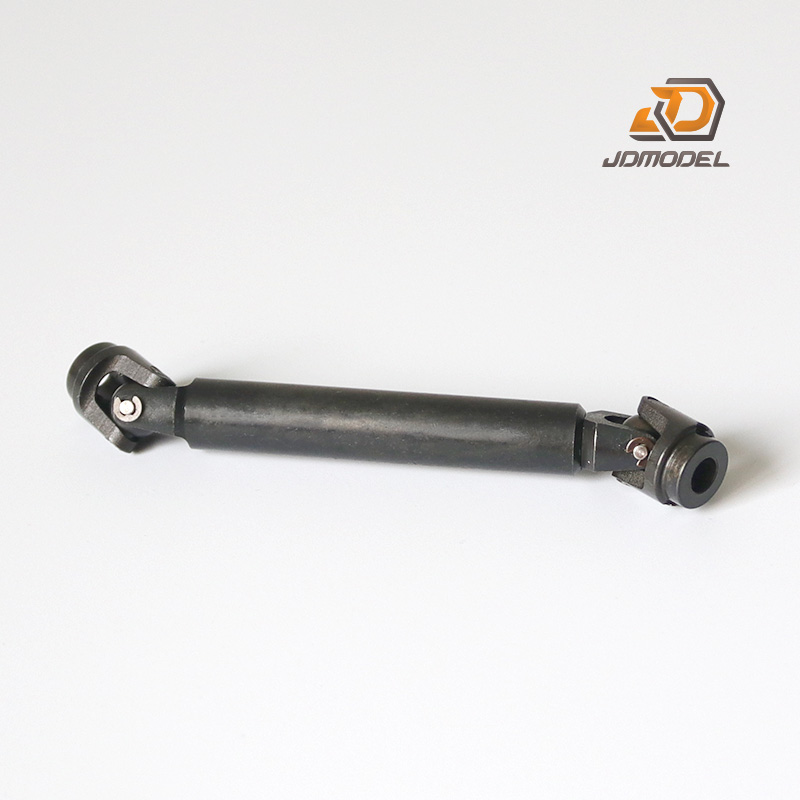

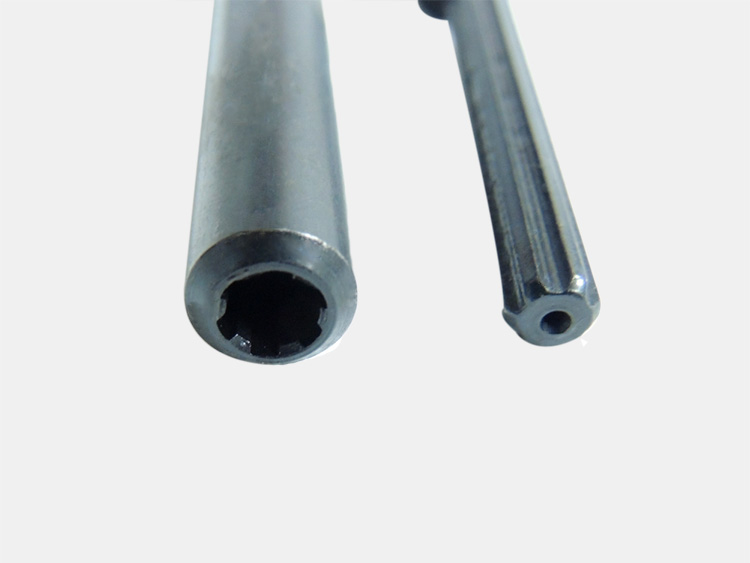

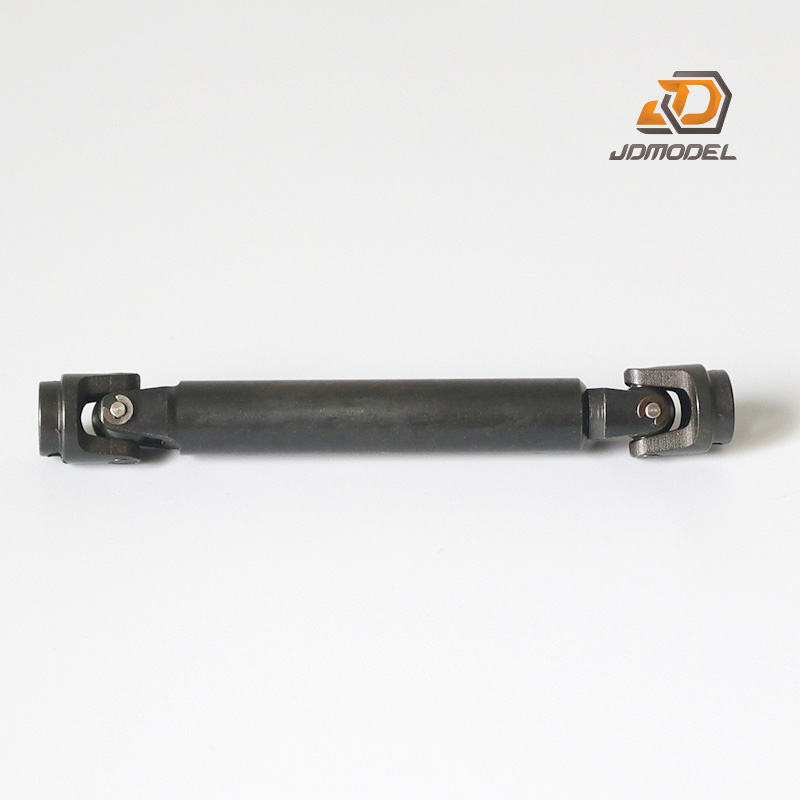

Simulation drive shaft, suitable for 1/14 series tractors and DIY modified cars, 45# steel modulation, simulation spline structure, heat treatment, black surface, shortest retracted length 46MM, longest extended length 56MM, inner hole 5MM two M3-4 top screws, E-card design to prevent pin drop (it is a dog bone upgrade for the bridge of 1:14 Tamiya trailer, suitable for Tamiya double-bridge vehicles)



Model: JDM-11

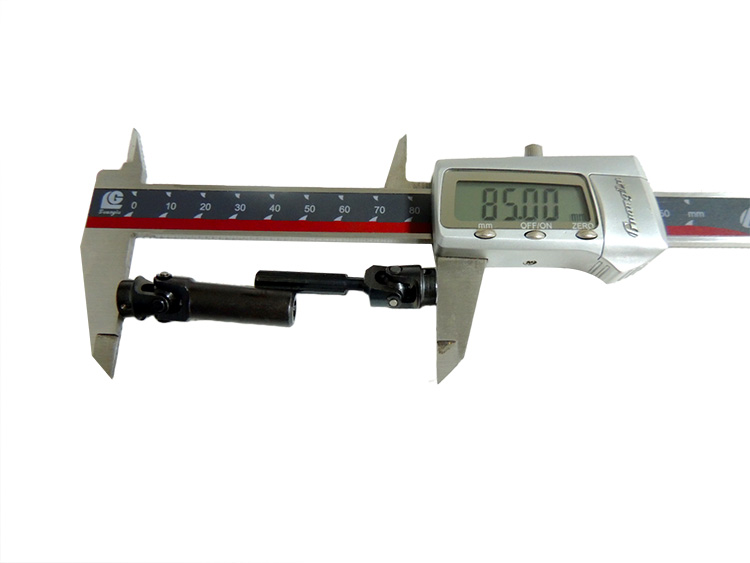

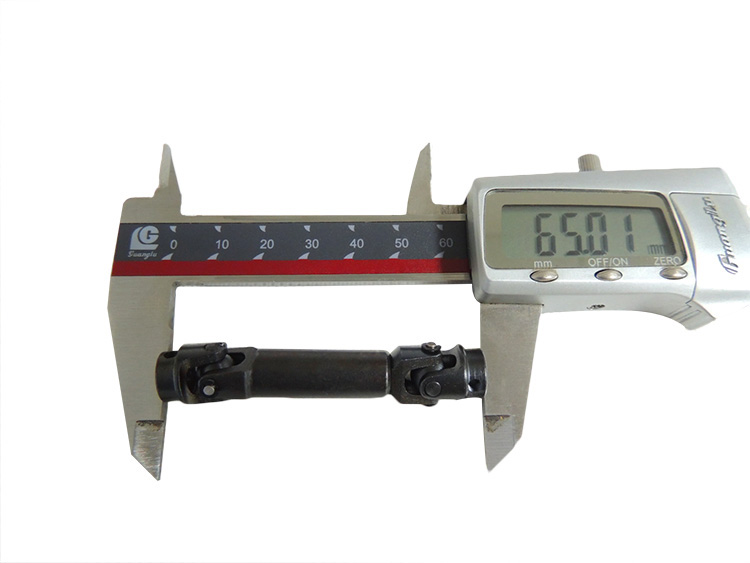

Simulation drive shaft, suitable for 1/14 series tractors and DIY modified cars, 45# steel modulation, simulation spline structure, heat treatment, black surface, retracted minimum length 65MM, extended maximum 85MM, inner hole 5MM two M3-4 top screws, E card design to prevent pin drop





Model: JDM-12

Simulation drive shaft, suitable for 1/14 series tractors and DIY modified cars, 45# steel modulation, simulation spline structure, heat treatment, black surface, shortest retracted length 80MM, longest extended length 105MM, inner hole 5MM two M3-4 top screws, E-card design to prevent pin drop

TB2CXaFE1uSBuNjSsziXXbq8pXa_!!3700309665.jpgTB2jbKRE9BYBeNjy0FeXXbnmFXa_!!3700309665.jpg




Model: JDM-13

Simulation drive shaft, suitable for 1/14 series tractors and DIY modified cars, 45# steel modulation, simulation spline structure, heat treatment, black surface, shortest retracted length 92MM, longest extended length 128MM, inner hole 5MM two M3-4 top screws, E-card design to prevent pin drop









Model: JDM-14

Simulation drive shaft, suitable for 1/14 series tractors and DIY modified cars, 45# steel modulation, simulation spline structure, heat treatment, black surface, retracted minimum length 125MM, extended maximum 158MM, inner hole 5MM two M3-4 top screws, E-card design to prevent pin drop


Model: JDM-36

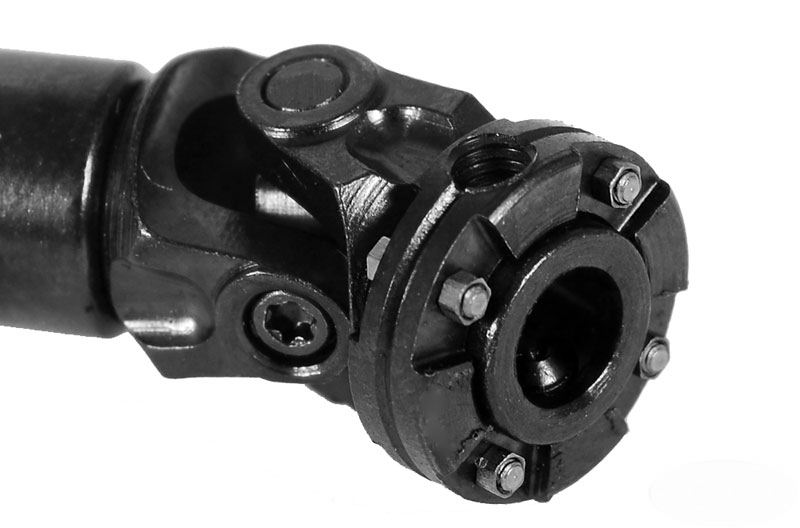

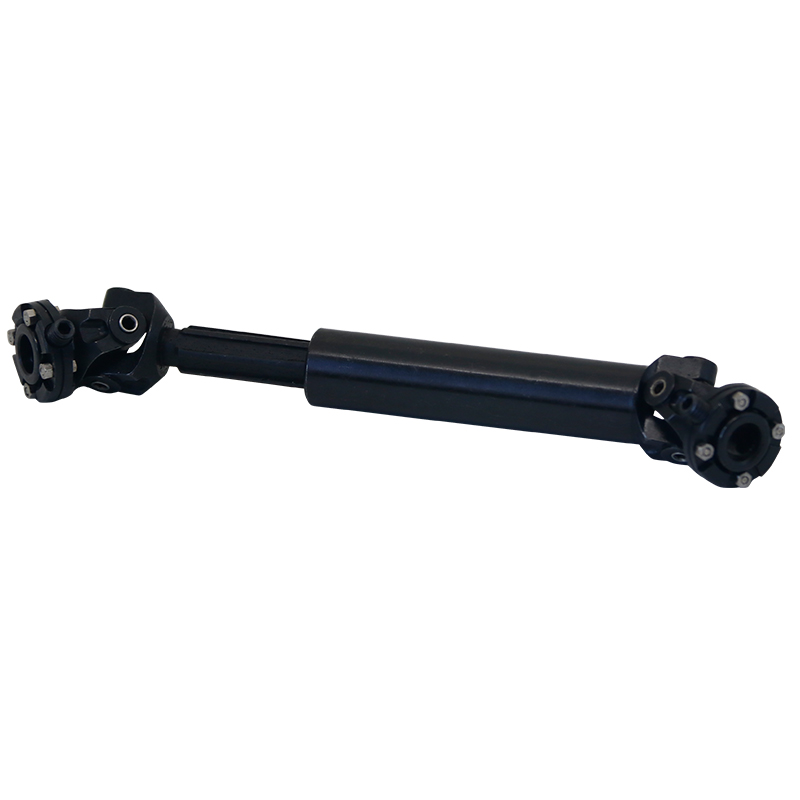

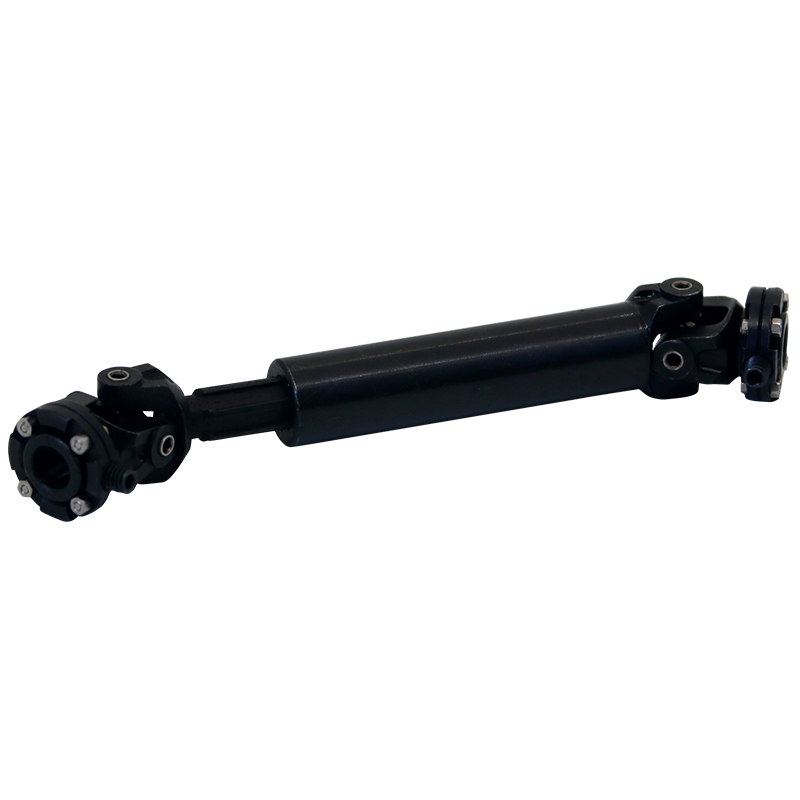

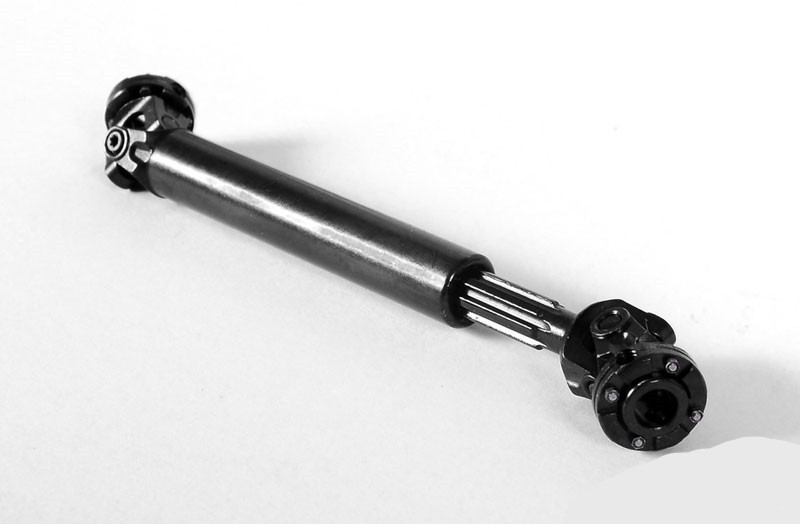

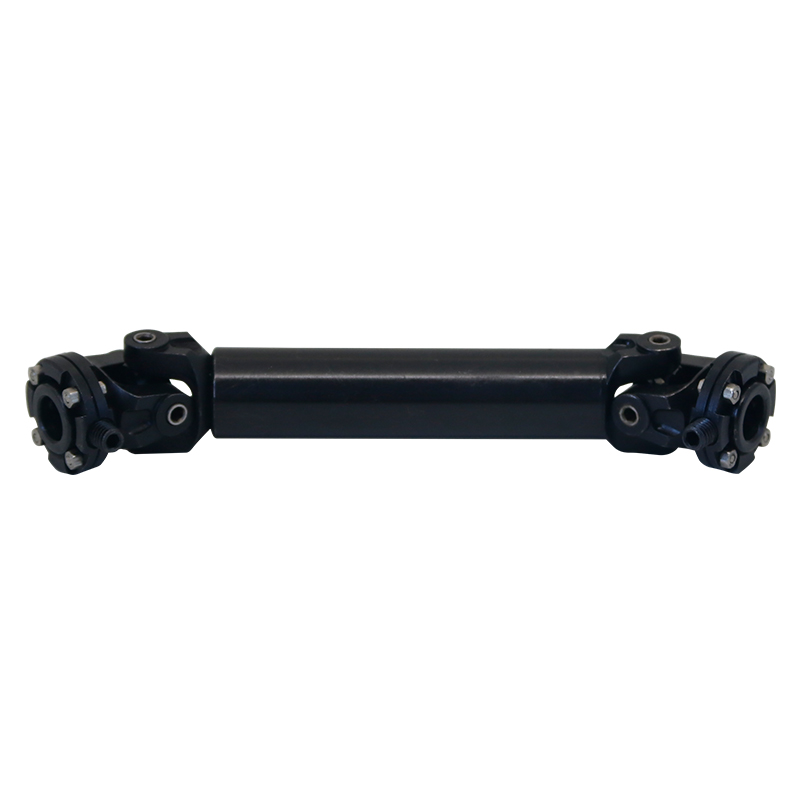

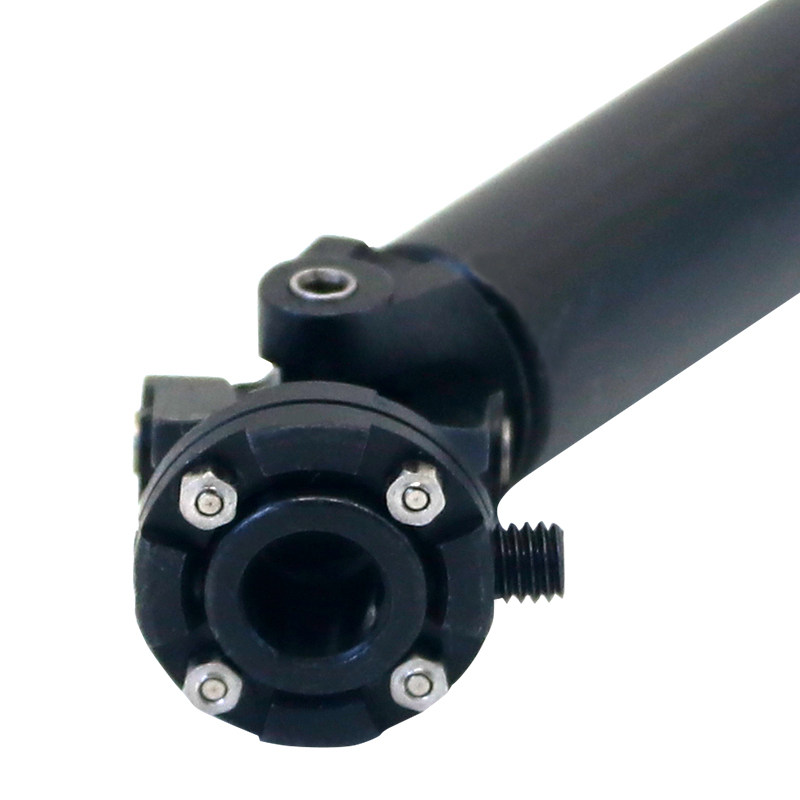

New flange simulation drive shaft

Size: Drive shaft inner hole 5MM, flange outer diameter 13MM, retracted shortest 46MM long, extended longest 55MM long.

Material: 45 steel modulation.

Suitable for models: 1/14 series tractors and DIY modified cars

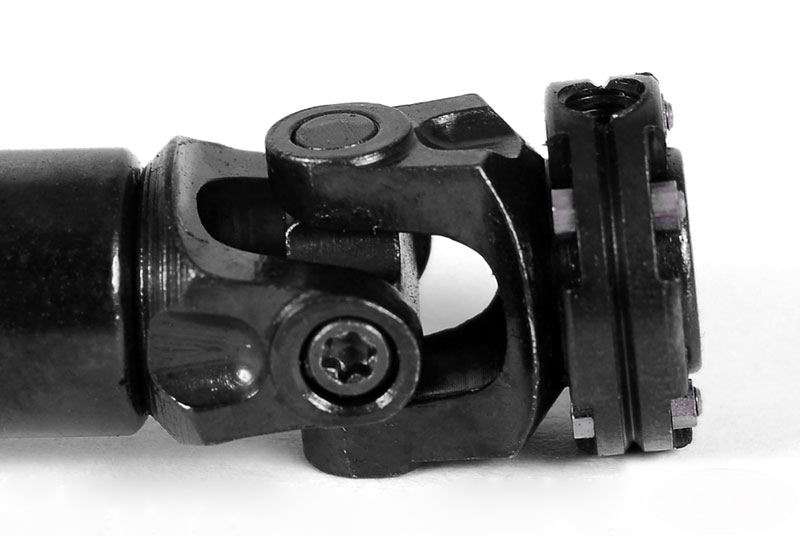

Features: Brand-new exterior design, more simulated structure, with real car flange shape, heat treatment,

black surface, thickened flange, more durable, and the M3 top thread position is redesigned, the effective thread is longer, 4 M1.2-4.5 hexagonal screws and M2.0 hexagonal nuts are installed on one side, one M3-4 and one M3-5 end screw, the latest upgrade, reinforced M2.5 screw (fixed shaft pin)

Installation method: When installing, please find one end of the M3-5 screw (the screw head exposes 5MM hole) and align it with the flat position of the connecting shaft




Model: JDM-37

New flange simulation drive shaft

Size: Drive shaft inner hole 5MM, flange outer diameter 13MM, retracted shortest 65MM long, extended longest 85MM long.

Material: 45 steel modulation.

Suitable for models: 1/14 series tractors and DIY modified cars

Features: Brand-new exterior design, more simulated structure, with real car flange shape, heat treatment, black surface, thickened flange, more durable, and M3 top thread position redesigned, effective thread longer, 4 M1.2-4.5 hexagonal screws and M2.0 hexagonal nuts on one side, one M3-4 and one M3-5 end screw, latest upgrade, reinforced M2.5 screw (fixed shaft pin)

Installation method: When installing, please find one end of the M3-5 screw (the screw head exposes 5MM hole) and align it with the flat position of the connecting shaft





Model: JDM-38

New flange simulation drive shaft

Size: Drive shaft inner hole 5MM, flange outer diameter 13MM, retracted shortest 95MM long, extended longest 125MM long.

Material: 45 steel modulation.

Suitable for models: 1/14 series tractors and DIY modified cars

Features: Brand-new exterior design, more simulated structure, with real car flange shape, heat treatment, black surface, thickened flange, more durable, and M3 top thread position redesigned, longer effective thread, 4 M1.2-4.5 hexagonal screws and M2.0 hexagonal nuts on one side, one M3-4 and one M3-5 end screw, latest upgrade, reinforced M2.5 screw (fixed shaft pin)

Installation method: When installing, please find one end of the M3-5 screw (the screw head exposes 5MM hole) and align it with the flat part of the connecting shaft




Model: JDM-40

New flange simulation drive shaft

Size: Drive shaft inner hole 5MM, flange outer diameter 13MM, retracted shortest 145MM long, extended longest 175MM long.

Material: 45 steel modulation.

Suitable for models: 1/14 series tractors and DIY modified cars

Features: Brand-new exterior design, more simulated structure, with real car flange shape, heat-treated surface blackening, thickened flange, more durable, and M3 top thread position redesigned, effective thread longer, 4 M1.2-4.5 hexagonal screws and M2.0 hexagonal nuts on one side, one M3-4 and one M3-5 end screw, latest upgrade, reinforced M2.5 screw (fixed shaft pin)

Installation method: When installing, please find one end of the M3-5 screw (the screw head exposes a 5MM hole) and align it with the flat position of the connecting shaft




Model: JDM-48

New flange simulation drive shaft

Size: Drive shaft inner hole 5MM, flange outer diameter 13MM, retracted shortest 180MM long, extended longest 220MM long.

Material: 45 steel modulation.

Suitable for models: Tamiya 1/14 series tractors and DIY modified cars

Features: Brand-new exterior design, more simulated structure, with real car flange shape, heat treatment, black surface, thickened flange, more durable, and M3 top thread position redesigned, effective thread longer, 4 M1.2-4.5 hexagonal screws and M2.0 hexagonal nuts on one side, one M3-4 and one M3-5 end screw, the latest upgrade, reinforced M2.5 screw (fixed shaft pin) with exquisite simulation wrench

Installation method: When installing, please find one end of the M3-5 screw (the screw head exposes 5MM hole) and align it with the flat position of the connecting shaft






Model: JDM-103

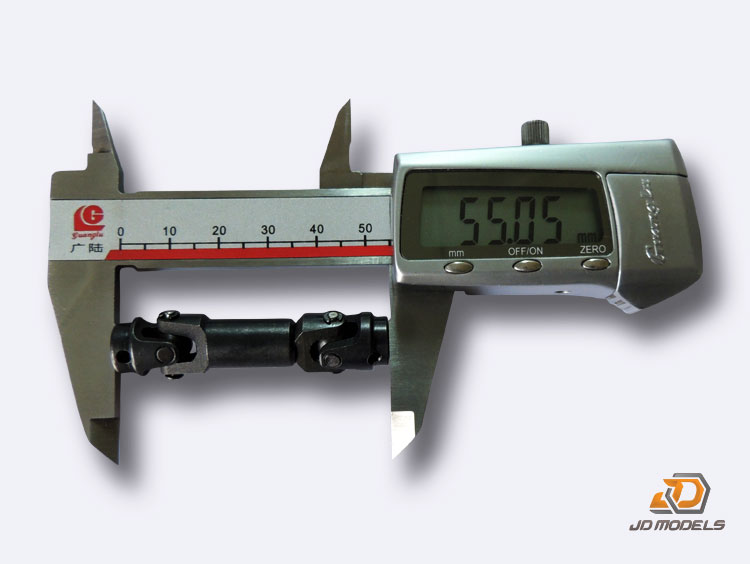

Simulation drive shaft, suitable for 1/14 series tractors and DIY modified cars, 45# steel modulation, simulation spline structure, heat treatment, black surface, shortest retracted length 55MM, longest extended length 70MM, inner hole 5MM two M3-4 top screws, E-card design to prevent pin drop





Model: JDM-196

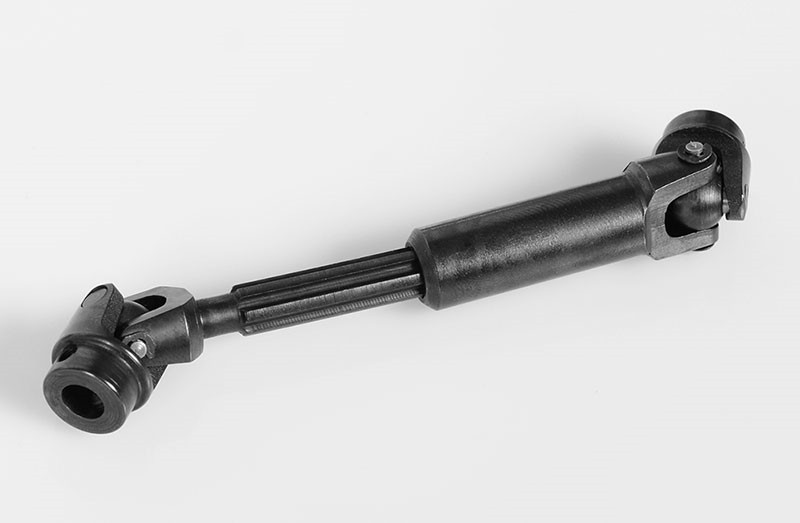

JDMODEL JDM-197U version drive shaft 1:14 tractor climbing drive shaft, CVD80-110

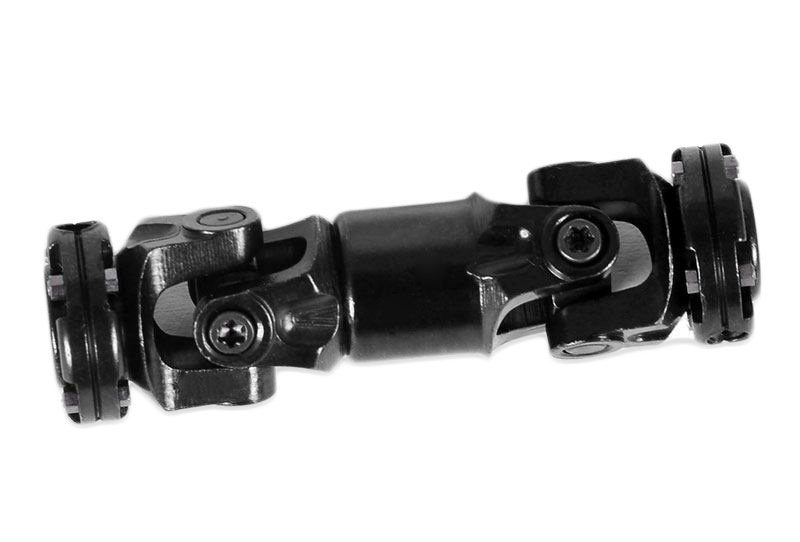

JDM's latest universal shaft, a new design, a more simulated structure, with a flange shape.

Retract 80 and extend 110, used for TF2 and other climbing vehicles, engineering vehicles, trailers, military vehicles. Below is a comparison chart and the conventional universal shaft sleeve.
